OREI Premium 4K HDMI to HDMI Scaler with PAL to NTSC Conversion (XD-4000)

SKU: XD-4000
Availability:

Out of stock
Add to wishlist
Compare
Share On:
  • Supports up scaling video resolutions up to 4K@50/60Hz (YUV444) and downscaling video resolutions to 1024×768@60Hz
  • Supports CEC bypass
  • Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio

₹13,516.00 ₹16,999.00

Out of stock

OREI XD-4000: 4K HDMI PAL to NTSC Converter with Scaler

Key Features:



  • HDMI 2.0b (18Gbps), HDCP 1.4/2.2 compliant
  • UP scaling video resolution up to 4K2K@50/60Hz (YUV444)
  • Downscaling video resolution up to 1024×768@60Hz
  • Exacts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
  • Supports Dolby True HD, Dolby Digital Plus, and DTS – HD Master Audio plus LPCM(up to 192kHz)
  • Front panel buttons, OSD and RS-232 Control
  • Manually Set output to a specific resolution
  • Adaptive de-interlacing support
  • Ideal for the purpose where the resolution is mismatched or experiencing EDID or HDCP issues

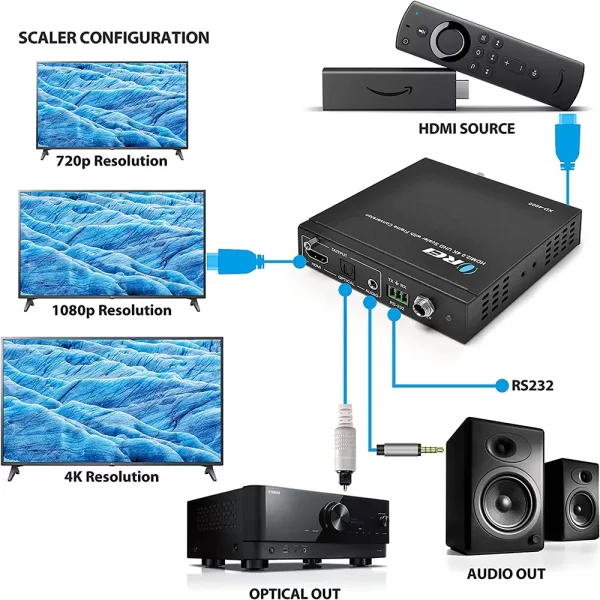

This scaler is a high performance, HDMI 2.0, HDCP 1.4/2.2 compliant scaler capable of upscale and downscale among Ultra HD/4K, Full HD, and HD resolutions with frame converting support. It accepts a wide range of resolutions from 480i up to 4K@60Hz4:4:4 and output resolutions up to 4K@60Hz4:4:4 with digital and analog audio extraction. It provides one HDMI input and one HDMI output and the scaler automatically scale any input signal to match the native resolution of the display or any connected HDMI device Or output can be set to a specific resolution. It supports a data rate up to18Gbps with 4K@60Hz 4:4:4 color format which is HDMI 2.0 specification.

The scaler features front panel buttons or OSD (On-Screen Display) menu or RS-232 control for scaler configuration.

HDMI Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X.

SKU: XD-4000 Categories: ,

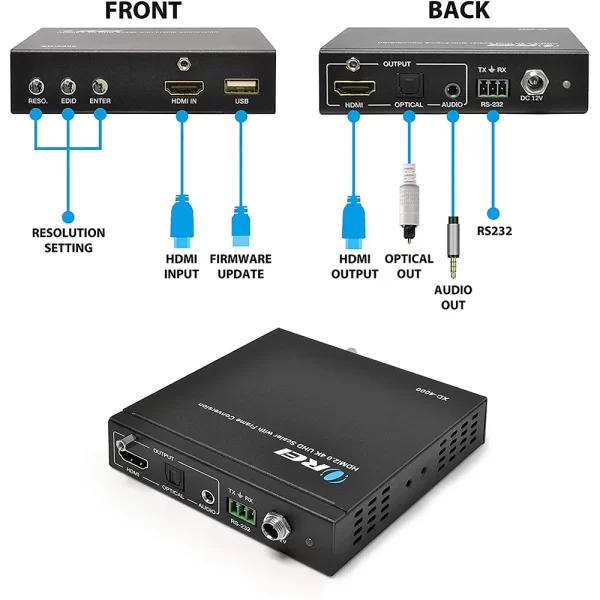

CONNECTIVITY

Input Ports: 1 x HDMI IN [Type A, 19-pin female]
Output Ports: 1 x HDMI OUT [Type A, 19-pin female]
  1 x L/R Audio Out [3.5mm Stereo Mini-jack]
  1 x Optical Out [S/PDIF]
Control Ports: 1 x RS232 [Phoenix connector]
  1 x Firmware [Mini USB]

COMPLIANCES

HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 1.4 and 2.2

AUDIO AND VIDEO

Video Bandwidth: 18 Gbps
Video Resolutions: Ultra HD/4K up to 4096 x 2160 @50/60Hz
Input Resolution: 640×480@60Hz, 720x576i@50Hz, 1024×768@60Hz 1280×768@60Hz, 1365×1024@60Hz, 1856×1392@60Hz, 1920×1440@60Hz, 3840×2160@25Hz, 4096×2160@30Hz 4096×2160@50Hz, 720x480i@60Hz, 720x576p@50Hz, 1152×864@75Hz, 1280×960@60Hz, 1600×1200@60Hz 1920×1080@60Hz, 3840×2160@24Hz, 4096×2160@24Hz, 3840×2160@50Hz, 4096×2160@60Hz 720x480p@60Hz, 800×600@60Hz, 1024×768@75Hz, 1280x1024X60Hz, 1680×1050@60Hz 1920×1200@60Hz, 3840×2160@30Hz, 4096×2160@25Hz, 3840×2160@60Hz
Output Resolutions: 1024×768@60Hz, 1280×800@60Hz, 1600×1200@60Hz 1920×1080@50Hz, 3840×2160@50Hz 1280×720@50Hz, 1360×768@60Hz, 1680×1050@60Hz 1920×1080@60Hz, 3840×2160@60Hz 1280×720@60Hz, 1400×1050@60Hz 1920×1200@60Hz, 3840×2160@30Hz, 3840×2160@25Hz
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2YCbCr 4:2:0
Color Depth: 10-bit, 12-bit
HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats: LPCM 2CH,LPCM 5.1,Dolby Digital 2/5.1CH, DTS2/5.1CH
L/R Audio Formats: Analog Stereo 2CH

BUTTONS

Resolution: Press the button to switch output resolution
EDID: Press the button to change EDID value
ENTER: Press the button to save setting, long press for 5 seconds
will do software update for the scaler

SIGNALS

TMDS Signal: 3.3V
DDC Signal: 5V

FUNCTIONS

CEC Function:
 Pass-through
Downscaler Function: Yes
Screen Flip Function: Yes

PROTECTION

Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity: 20~90% RH (non-condensing)
ESD Protection: Human-body Model：±8kV (Air-gap discharge) ,
±4kV (Contact discharge)

DIMENSIONS & WEIGHT

Height: 25 mm
Width: 115 mm
Depth: 100 mm
Weight: 450 g

POWER

Power Consumption (Max): 8W
Power Supply: Input: AC100~240V 50/60Hz
Output: DC 12V/1A(US/EU standards，CE/FCC/UL certified)

PROPERTIES

Color: Black
Housing: Metal Enclosure

PACKAGE CONTENTS

1x XD-4000 HDMI 4K Ultra HD Scaler
1x 12V/1A Power Adapter
1x User Manual

WARRANTY

1-Year Manufacturer’s Warranty

Downloads

Quick Setup & Installation guide

XD-4000 User Manual Download

Support

Yes, XD-4000 supports screen flip function

Yes, XD-4000 will bypass the HDCP

The XD-4000 comes with the latest firmware installed, please contact us if you face any issues and we will help you out.

Please contact us with your requirements and we will help you to choose the right product for your requirements

Below is the link where you can sign up for the wholesaler account:
https://fayzelectronics.com/place-wholsale-order/

You can visit the below link to register for extended warranty:
https://fayzelectronics.com/warranty-registration/

The following are the ways by which you can contact us: – Via call: 99250 12671 between Mon – Fri 10:00 am – 7:00 pm IST.
– Via email: Please email us at [email protected]& we will respond to you within 24 hours.
– Via contact us form: Please visit the contact us form by visiting the link to contact us:
https://fayzelectronics.com/contact-v1/
