OREI PAL to NTSC HDMI Video Converter – RCA composite/S-video (XD-940)

Supports PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M, PAL/N standard TV formats input
Supports HDMI 4K@60Hz,1080p@60Hz or 720p@60Hz output
Provide advanced signal processing with great precision, colors, resolutions, and details

₹4,499.00 ~~₹5,499.00~~

Compare

OREI XD-940: RCA to HDMI Converter with PAL NTSC Signal

Key Features:

Convert RCA Composite (Red, White, Yellow) or S-Video to HDMI Converter – Automatically convert signals from PAL or NTSC analog to up to 4K HDMI
Built-in scaler to upscale video resolutions up to 4K at 60Hz to view on the UltraHD 4K displays and supports zoom function
Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M and PAL/N input format and built-in Time Base Correction (T.B.C) for signal synchronization
Simple and easy plug & play setup
Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world, Lifetime OREI Tech Support & 12-Month Manufacturer’s Warranty

Few sample applications:

TV: Take your NTSC (American) UltraHD TV to an overseas PAL country and connect the local PAL set top boxes with analog output to your TV using the XD-940.

International travel and relocation: Connect your analog video equipment or older gaming systems using the XD-940 to new Ultra HD TVs using HDMI connection.

Camcorders or VCRs: Connect your older camcorders or VCR with your HD TV.

Game Systems: Connect PAL or Analog game system like NES, SNES, PlayStation etc. to a TV with HDMI connection only.

HDMI Output on XD-940 – Supports both audio & video from your source through the HDMI connection and you may set the output resolution to 4K, 1080p or 720p at 50Hz or 60Hz.

SKU: XD-940 Categories: Converters & Extractors, Video Converters & Scalers

CONNECTIVITY

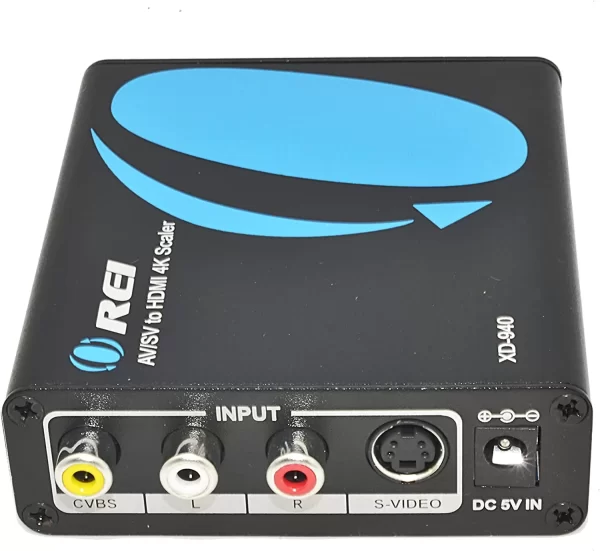

Input Ports:	1 x RCA Port
	1 x S-Video

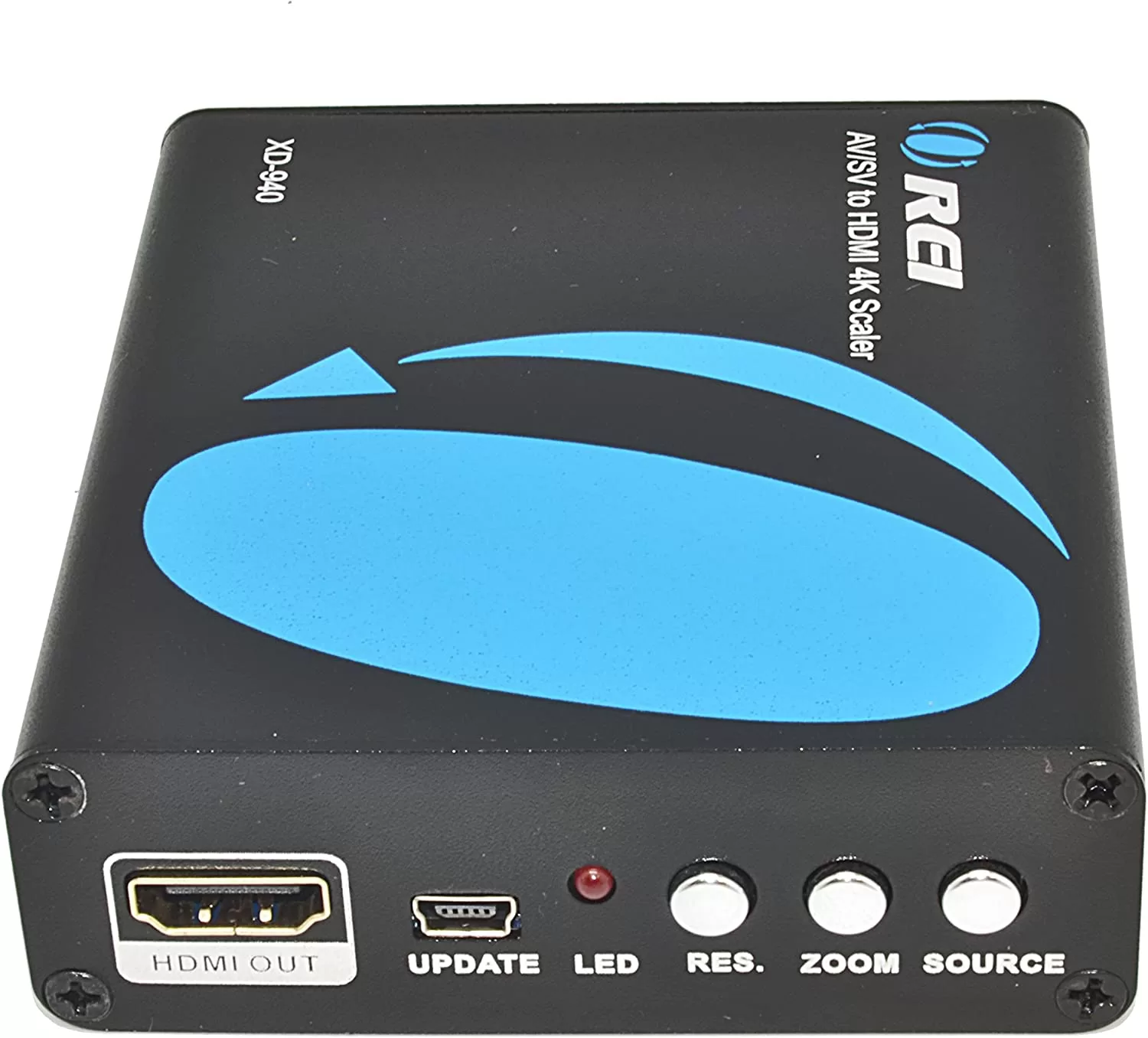

Output Ports:	1 x HDMI OUT
Control Ports:	1 x Mini USB [Update]

COMPLIANCES

HDMI Compliance	HDMI 1.4b
HDCP Compliance	HDCP 1.4

AUDIO AND VIDEO

Video Bandwidth:	297MHz
Video Resolutions:	Up to 4K@60Hz
Input Resolution:	PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats
Output Resolutions:	4K@30/60Hz, 1080p@60Hz, 720p@60Hz
Color Space:	RGB, YCbCr 444 422 420
Color Depth:	8Bit

BUTTONS

Source:	This button is used to switch between CVBS and SV
Zoom:	This button is used for scaling the output picture
Resolution:	This button is used to select the output resolution

SIGNALS

TMDS Signal:	3.3V
DDC Signal:	5V

FUNCTIONS

Downscaler Function:

PROTECTION

Operation Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20 ~ 90% RH (Non-condensing)
ESD Protection:	Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)

DIMENSIONS & WEIGHT

Height:	28 mm
Width:	84 mm
Depth:	93 mm
Weight:	165 g

POWER

Power Consumption (Max):	3.5 W
Power Supply:	5V/1A

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

PACKAGE CONTENTS

1 x XD-940 AV/SV to HDMI 4Kx2K Scaler Converter

1 x DC5V/1A Power Adapter

1 x User Manual

WARRANTY

1-Year Manufacturer’s Warranty

Downloads

Quick Setup & Installation guide

XD-940 User Manual Download
