HDMI Matrix, Matrix Switches
OREI Ultra HD 2×2 HDMI Matrix Switch – 4K with Audio Extractor – UHDS-202
- 2 Inputs – 2 outputs HDMI Matrix switch
- Video resolution up to 4K@50/60Hz YCbCr 4:4:4 – EDID Control
- Supports Dolby Vision, HDR 10+
- Compliance: HDCP 2.2, 1.x
₹5,299.00 ₹9,999.00
OREI UHDS-202: 2×2 HDMI Matrix Switch
Key Features:
- HDCP2.2 / HDCP1.x, DVI 1.0 compliant
- HDMI 2 input into 2 output Matrix Switcher
- Supports highest video resolution up to 4K@60Hz, 2k@60Hz EDID bypass, Full 3D
- Supports PCM, Dolby True HD, DTS-HD Master Audio up to 2 Ch. Digital and analog audio output
- Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1
- Support digital and analog audio extract output from output A
- Support 18Gbps video bandwidth

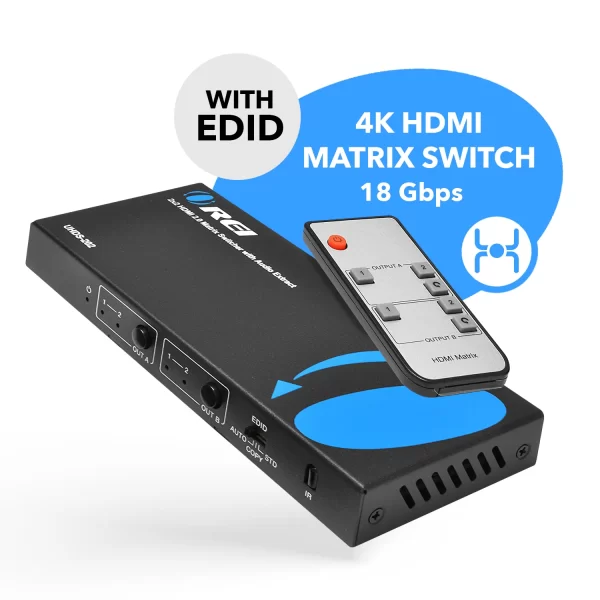

- EDID can be selected with AUTO, COPY, and STD mode via the selector on the front panel
- 2 in 2 out HDMI Switch smart EDID management, 4K/60Hz, 2k@60Hz 2×2 18G switcher w/ audio de-embedded, HDR, HDCP 2.2
- Support HDR function

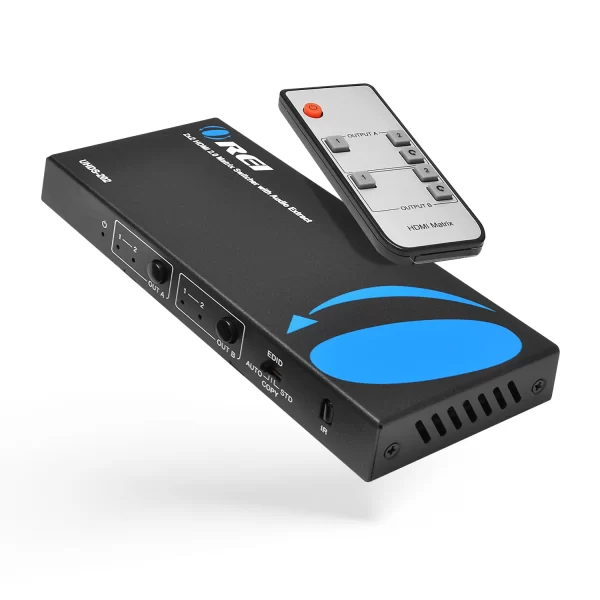

- Flexible control via panel buttons and IR remote

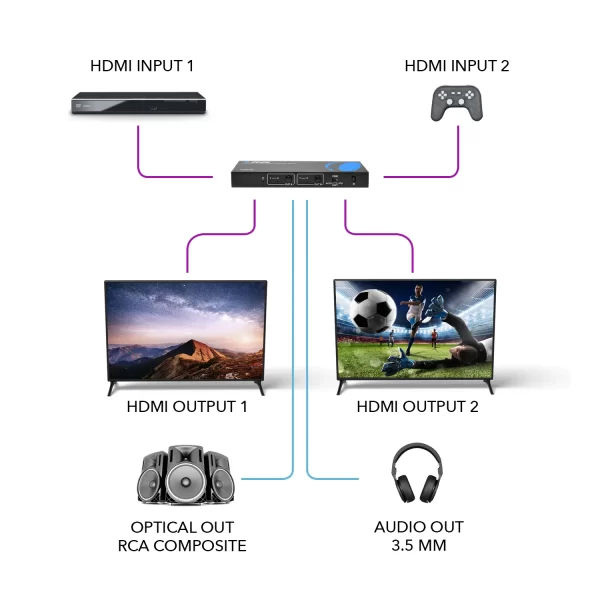

This OREI UHDS-202 18Gbps 2×2 HDMI Matrix switcher supports the transmission of the video signal (up to 4K@50/60Hz, 2k@60Hz) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extract from output A to optical and analog output. This HDMI has 2 input into 2 output Matrix Switcher.
Supports highest video resolution up to 4K at 60Hz, 2k@60Hz EDID bypass. 2 IN 2 OUT HDMI SWITCH – Smart EDID management, 4K/60Hz 4:4:4,4×1 18G switcher w/ audio de-embedded, HDR. This HDMI switch designed with 2 input ports and 2 output ports, you can choose the HDMI signal source by the IR remote control, easy to access.
It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and remote, the corresponding LED indicator on the front panel will be illuminated.
0a (18Gbps) HDMI 2 input into 2 output Matrix Switcher – Supports highest video resolution up to 4K x 2K at 60Hz), EDID bypass, Full 3D and HDCP2.2 complaint. Supports PCM, Dolby True HD, DTS-HD Master Audio up to 7.1 Ch. Digital and analog Audio output. 2 IN 2 OUT HDMI SWITCH – Smart EDID management, 4K/60Hz 4:4:4,4×1 18G switcher w/ audio de-embedded, HDR, HDCP 2.2, This HDMI switch designed with 2 input ports and 2 output port, you can choose the HDMI signal source by the IR remote control, easy to access.
CONNECTIVITY
| Input Ports: | 2×HDMI Type A [19-pin female] 1×IR Receiver Window |
| Output Ports: | 2×HDMI Type A [19-pin female] |
|  | 1×L/R [3.5mm Stereo Mini-jack] |
|  | 1×OPTICAL OUT [Optical jack] |
AUDIO AND VIDEO
| Video Bandwidth: | 594MHz/18Gbps |
| Video Resolution: | Up to 4K2K@50/60Hz YCbCr 4:4:4 |
| HDMI Audio Formats: | PCM 2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby-TrueHD, DTS-HD |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| L/R Audio Formats | Analog stereo PCM 2.0 |
| Optical Audio Formats |
LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
COMPLIANCE
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 1.x, 2.2 |
POWER
| Power Supply: | Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 2.7W |
FUNCTIONS
| CEC Function: | Pass through |
PROTECTION
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

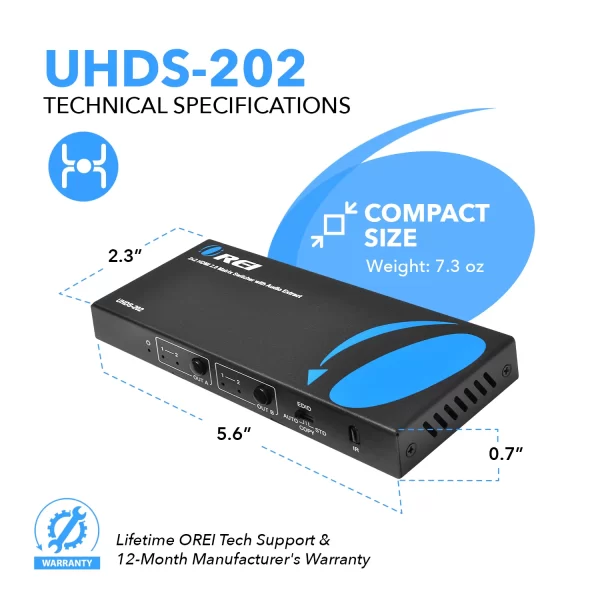

DIMENSIONS & WEIGHT
| Height | 18mm |
| Width | 144mm |
| Depth | 59.5mm |
| Weight | 208g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × UHDS-202 2×2 HDMI Matrix switch |
| 1 × Power Adapter |
| 1 × Matrix IR Remote |
| 1 × User Manual |
Warranty
| 1 – Year Manufacturer’s Warranty |
Support
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or “mirror” a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV’s to turn ON as soon as the source is turned ON.
Yes, It uses a 5V 1A DC power supply adapter
