OREI 4K 6X4 HDMI Matrix Extender Over Cat5/6 Upto 132Ft – Extender HDBaseT – UHD66-EX132-K

OREI UHD66-EXB132-K – 4K 6×4 HDBaseT HDMI Matrix – 132 Feet

• HDMI 2.0b, HDCP 2.2 and DVI compliant
• Routes 6 HDMI sources to 6 displays including 4 HDBaseT outputs and 2 local outputs
• Supports resolutions up to 4K@60Hz and 2K@60Hz on all HDMI ports
• Supports automatic 4K@60Hz (YUV 4:4:4) to 4K@60Hz (YUV 4:2:0) conversion for all HDBaseT outputs
• 4K signals can be transmitted up to 130 feet/40 meters and 1080p up to 230 feet/70 meters via CAT6/7
• Supports LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X
• Built-in independent audio matrix with Volume, Mute and Audio delay adjustment for lip-sync (LPCM only)
• HDR10, Dolby Vision, ARC, and smart EDID management supported

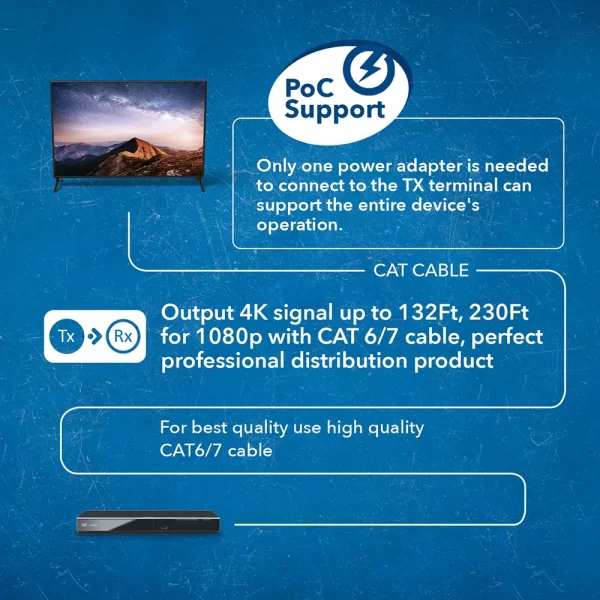

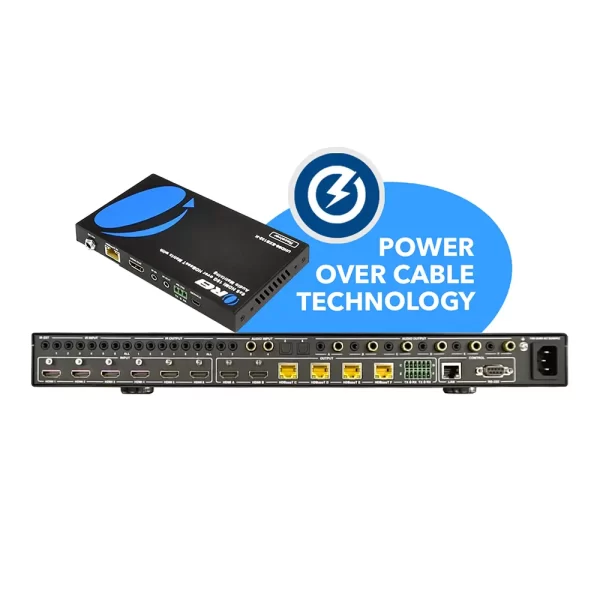

• 24V POC on all HDBaseT ports
• Control is via on-panel Button, IR, RS-232, Telnet and Web GUI

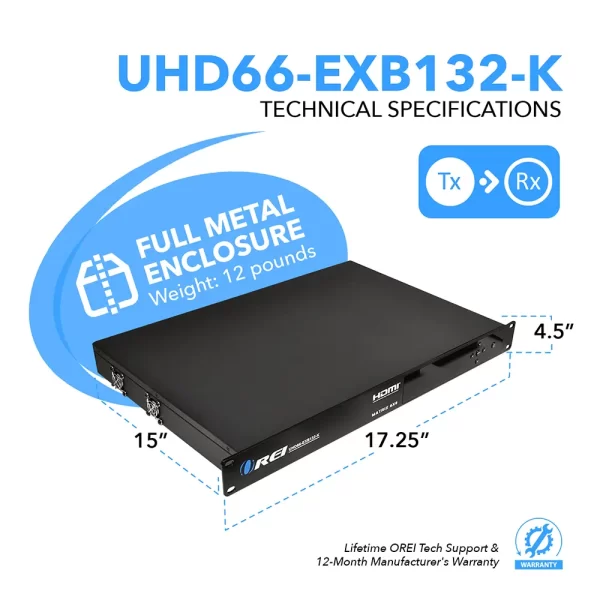

• 1U rack-mounted design with aluminum front panel housing
• This unit requires only one power adapter to work

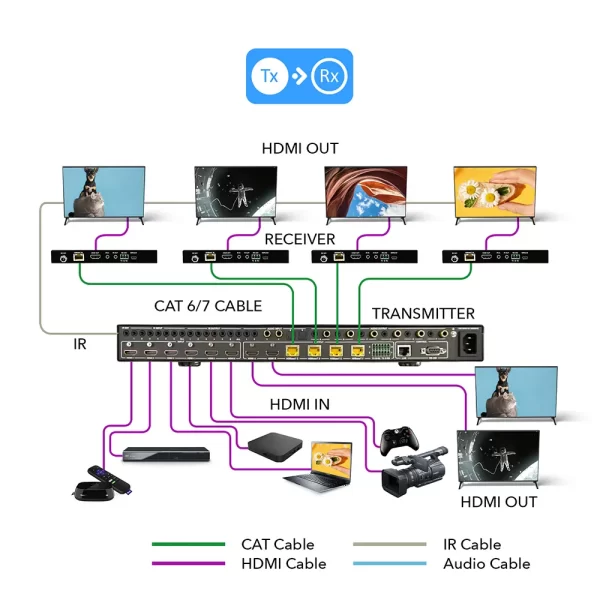

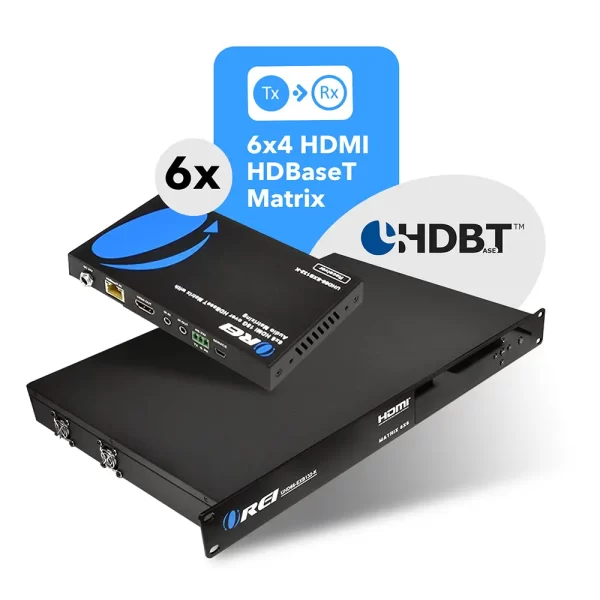

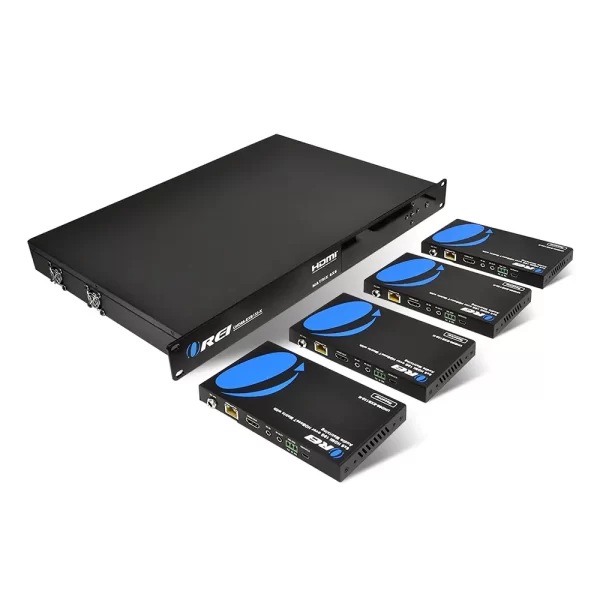

UHD66-EXB132-K is a 6×6 HDMI HDBaseT matrix that supports the transmission of video (resolutions up to 4K@60Hz 4:4:4, HDCP 2.2, HDMI 2.0) and multi-channel digital audio from 6 HDMI sources to 4 HDBaseT outputs and 2 independent HDMI 2.0 outputs.

HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 230 feet and the HDMI Loop outputs support cable lengths of up to 33 feet. This matrix built-in an independent 18×12 digital audio matrix with volume/delay tuning and also supports high-resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content pass-through.

The matrix can be easily controlled via the front panel button, IR, RS-232, Telnet, and Web GUI.
