OREI 1X4 HDMI Extender Splitter over Cat6/7 Up To 165 ft – Low Latency – HD14-EX165-K
- Supports 1080p@60Hz up to 165 feet
- Supports PoC function
- Supports EDID control via EDID selector
₹13,999.00 ₹21,480.00

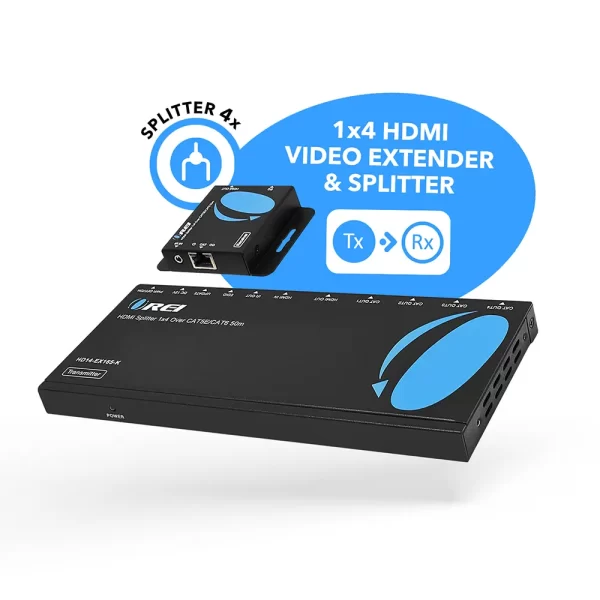

OREI HD14-EX165-K: 1X4 HDMI EXTENDER SPLITTER UPTO 165 FEET
Key Features:
Distribute 1 HDMI source to 4 HDMI displays over cat6 network cable simultaneously
1 in 4 out splitter receivers with power over cable feature – no adapter needed to power the receivers
Cat6 HDMI transmitter is equipped with 4 port Cat6 output
1 additional HDMI output to connect local HDMI display or monitor
EDID management control on transmitter
IR kit (20~60KHz) to receive the IR remote control commands from the receiver end to transmit back to the transmitter side to control to the HDMI source remotely
Plug & play setup without any software installation
Compatible with Cat6/7 ethernet network cables
Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distances transmission
UTP cable termination follows the standard of IEEE-568B
Operates for TMDS clock frequencies up to 148.5MHz
Up to Full HD resolution 1920×1080@60hz, ideal solution for HDMI exhibition, video conference, meeting rooms and bars

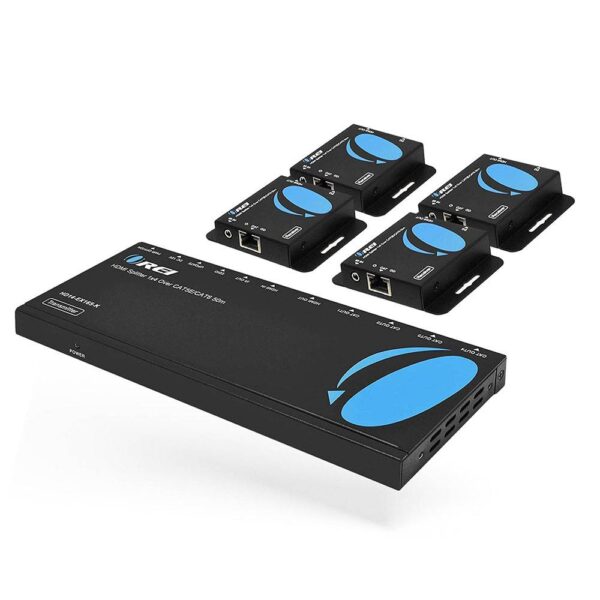

Includes: 1x Sender unit, 4x Receiver unit, Instructions manual, World-wide voltage power adapter & IR-kit. Lifetime OREI Tech Support & 12-Month Manufacturer’s Warranty
This unit requires only one power adapter to work

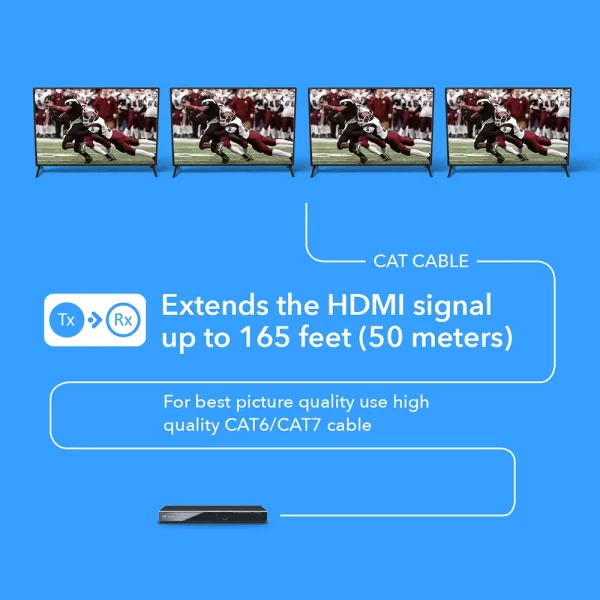

The OREI HD14-EX165-K HDMI extender splitter allows you to transmit HDMI audio/video signals over Cat6/7 cable along with maintaining original audio/video quality to up to 4 displays remotely. It supports up to 1080p resolution and extends the transmission distance up to 165 feet (50 meters).
Durable and easy to set up and operate without any software installations. Ideal for businesses, churches, test bench facilities, data centers and help desks to duplicate HDMI signals at long range.
HDMI Loop-out – Connect HDMI display to the transmitter (sender unit) for an output to local display at the source.
IR control – enables source device to recognize remote commands from remote display side.

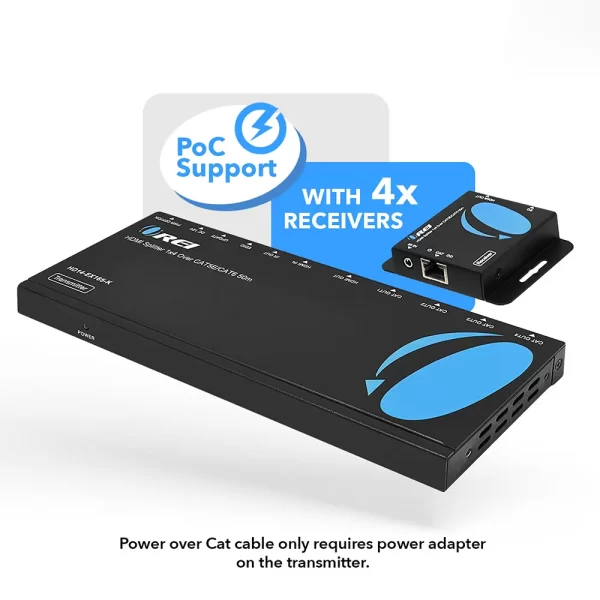

Power Over Cable – only use one included power adapter at transmitter (sender) side to power all the receivers
EDID Management – multiple EDID configuration options to select the perfect resolution and audio output settings for your connected displays.
| Weight | 1520 g |
|---|---|
| Dimensions | 264 × 197 × 90 mm |
CONNECTIVITY
| Transmitter: | Input Ports: | 1 × HDMI IN [Type A, 19-pin female] |
| Output Ports: | 1 × HDMI OUT [Type A, 19-pin female] | |
| 4 x CAT OUT [RJ45] | ||
| 1 x IR OUT [3.5mm Stereo Mini-jack] | ||
| Control Ports: | 1 x Update port [Mini USB] | |
| Receiver: | Input Ports: | 1 x IR IN [3.5mm Stereo Mini-jack] |
| 1 x CAT IN [RJ45, 8-pin female] | ||
| Output Ports: | 1 x HDMI OUT [Type A, 19-pin female] |
AUDIO AND VIDEO
| Video Bandwidth: | 297MHz/10.2Gbps |
| Video Resolutions: | 480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Color Space: | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| Color Depth: | 8-bit,10-bit,12-bit (1080p@60Hz); 8-bit (4K30Hz) |
| HDMI Audio Formats: | LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio |
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080p@60Hz: | 165 Feet |
FUNCTIONS
| EDID: | EDID dip switch on the Transmitter with 16 built-in EDID settings |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
SIGNALS
| TMDS Signals: | 3.3V |
| DDC Signals: | 5V |
PROTECTION
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (Non-condensing) |
| ESD Protection: | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
RJ-45 CONNECTOR TYPE
| Type: | WE/SS 8P8C |
POWER
| Power Consumption (Max): | 11W |
| Power Supply | 12V/2.5A DC Power (US/EU standards, CE/FCC/RoHs certificated) |
DIMENSIONS & WEIGHT
| Transmitter: | Height: | 18 mm |
| Width: | 210 mm | |
| Depth: | 83 mm | |
| Weight: | 448 g |
| Receiver: | Height: | 16.5 mm |
| Width: | 79.5 mm | |
| Depth: | 69 mm | |
| Weight: | 130 g |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
PACKAGE CONTENTS
| 1 x HDMI Transmitter |
| 4 x CAT Receiver |
| 1 x IR Blaster Cable (1.5 meters) |
| 4 x IR Receiver Cable (1.5 meters) |
| 1 x 12V/2.5A DC Locking Power Adapter |
| 2 x Mounting Ear |
| 8 x Machine Screw (KM3*4) |
| 1 x User Manual |
WARRANTY
| 1 – Year Manufacturer’s Warranty |
