OREI 4K 1X4 HDMI Extender Splitter over Cat6/7 Up To 400 ft – Low Latency – UHD14-EX400-K
- Supports HDBaseT 4K@60Hz YUV 4:4:4 up to 400 feet
- Supports digital and analog audio de-embedded output
- Supports one-way POC function (only from transmitter to receiver)
₹51,249.00 ₹69,999.00
OREI UHD14-EXB400-K: UltraHD 4K 1×4 Extender Splitter HDBaseT upto 400 Feet
Key Features:
- Distribute 4K – 1 HDMI source to 4 HDMI displays over CAT6/7Â Network Cable simultaneously
- Support one-way POC function (only from a transmitter to receiver)
- Power Over LAN – No Adapter needed on Receiver Side
- HDBaseT Technology for lossless and lag-free video transmission
- Output 4K signal up to 400 feet with Cat6/7 cable and 1080p signal up to 500 feet

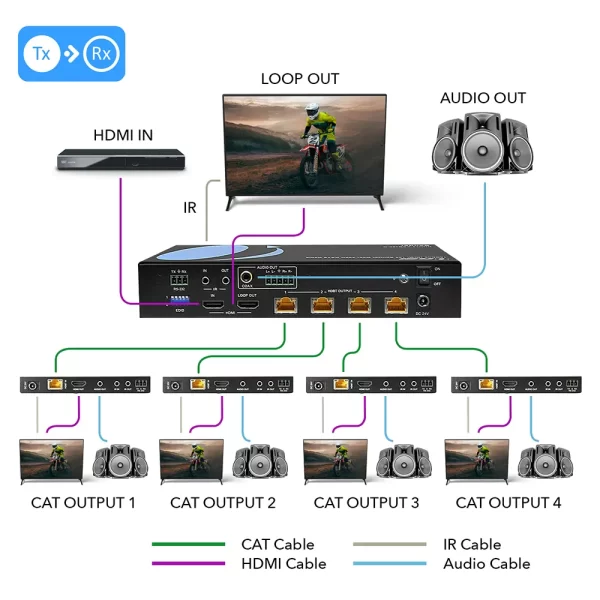

- Support 1 HDMI input, 1 HDMI loop output, and 4 HDBaseT outputs with 1 Additional HDMI Output to connect to a local display or monitor
- IR, RS-232 routed to HDBaseT output
- Supports 20~60Hz IR Pass Back
- Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
- Supports 18Gbps Bandwith
- UHD 4K/60Hz YUV 4:4:4, HDR, HDR10+, Dolby Vision, PoC
- HDR gives you higher contrast and vivid colors
- Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio, and all other HDMI standard formats
- Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.
- Plug & Play Setup without any Software Installation
- This unit requires only one power adapter to work

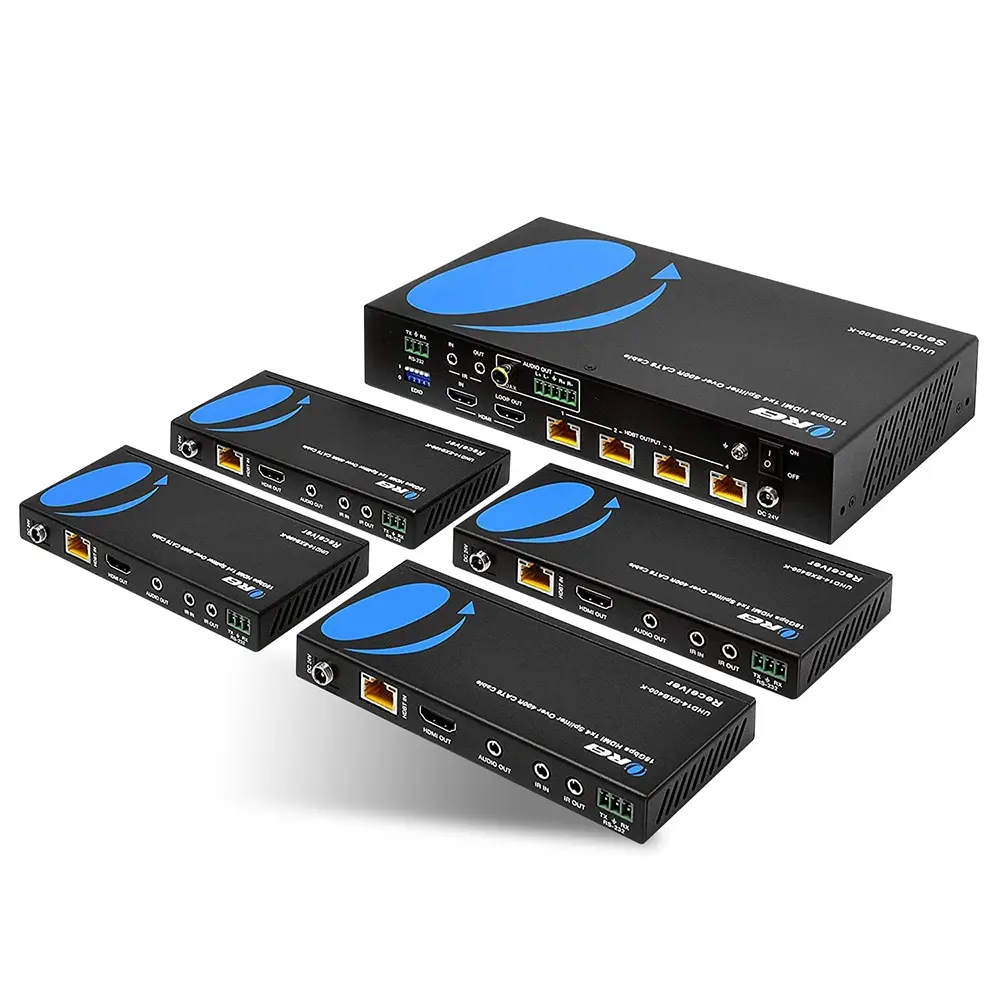

This OREI 1×4 4K HDBaseT HDMI Extender Splitter includes one transmitter and four receivers, extend 1 HDMI source to 4 HDMI displays over a single CAT6/6a/7 cable up to 400 feet at 4K signal, or up to 500 feet with 1080p resolution. Audio extract function and Advanced EDID Management.
Resolution Supported – 4K@30/60Hz, 1080p@50/60Hz ,1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz.
HDMI Audio Formats – LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X.
Coaxial Audio Formats –  PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1.
Analog Audio Formats – PCM 2.0CH.
CONNECTIVITY
| Transmitter: | Input Ports: | 1 × HDMI IN [Type A, 19-pin female] |
| Â | Â | 1 x IR IN [3.5mm Stereo Mini-jack] |
| Output Ports: | 1 × HDMI OUT [Type A, 19-pin female] | |
| 4 x HDBaseT OUT [RJ45] | ||
| 1 x IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 x Coaxial Audio OUT [RCA] | ||
| 1 x L/R Audio OUT [5-pin phoenix connector] | ||
| Control Ports: | 1 × RS-232 Port | |
| Receiver: | Input Ports: | 1 x IR IN [3.5mm Stereo Mini-jack] |
| 1 x HDBaseT IN [RJ45] | ||
| Output Ports: | 1 x HDMI OUT [Type A, 19-pin female] | |
| Â | 1 x IR OUT [3.5mm Stereo Mini-jack] | |
| Â | 1 x AUDIO OUT | |
| Control Ports: | 1×SERVICE [Micro USB, Update port] | |
|  | 1 × RS-232 Port |
AUDIO AND VIDEO
| Video Bandwidth: | 594MHz/18Gbps |
| Video Resolutions: | Up to 4k@50/60Hz 4:4:4 |
| Color Space: | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| Color Depth: | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4k@60Hz | 400 Feet |
| 1080p@60Hz: | 500 Feet |
FUNCTIONS
| EDID: | EDID dip switch on the Transmitter with 30 built-in EDID settings |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
SIGNALS
| TMDS Signals: | 3.3V |
| DDC Signals: | 5V |
PROTECTION
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (Non-condensing) |
| ESD Protection: | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
RJ-45 CONNECTOR TYPE
| Type: | WE/SS 8P8C |
POWER
| Power Consumption (Max): | 35W |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 24V/2.7A(US/EU standards, CE/FCC/UL certified) |

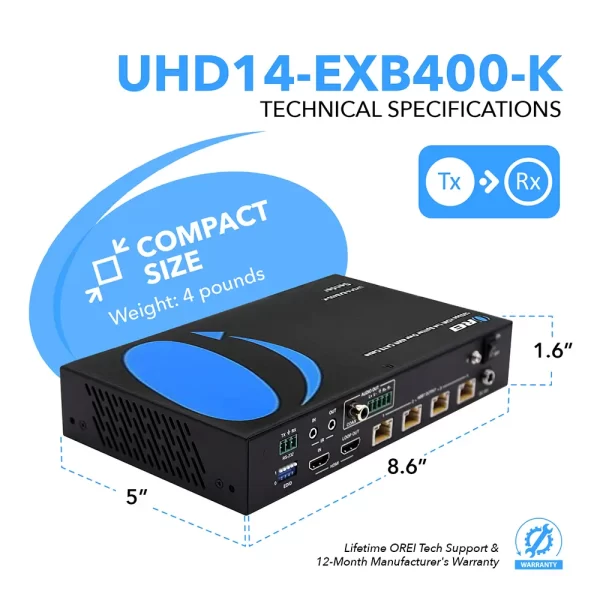

DIMENSIONS & WEIGHT
| Transmitter: | Height: | 40 mm |
| Width: | 220 mm | |
| Depth: | 130 mm | |
| Weight: | 853 g |
| Receiver: | Height: | 18 mm |
| Width: | 140 mm | |
| Depth: | 65 mm | |
| Weight: | 246 g |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
PACKAGE CONTENTS
| 1 x HDMI Transmitter |
| 4 x HDBaseT Receiver |
| 5 x Wideband IR Blaster cable |
| 5 x Wideband IR Receiver cable |
| 5 x 3-pin Phoenix Connector |
| 1 x 5-pin Phoenix Connector |
| 1 × 24V/2.7A DC Locking Power Adapter |
| 10 x Mounting Ear |
| 1 x User Manual |
WARRANTY
| 1 – Year Manufacturer’s Warranty |
