Extenders (Balun), HDMI Extenders
OREI 4K@60hz 1×2 HDMI™ Extender Splitter (IR) – 230ft (Cat6) – (UHD12-EX230-K)
- HDCP 2.2 compliant
- Video resolution up to 4K@60Hz
- Advanced EDID management
₹16,183.00 ₹20,228.00
OREI UHD12-EX230-K : 4K HDMI™ EXTENDER SPLITTER 1X2 OVER CAT6 70M

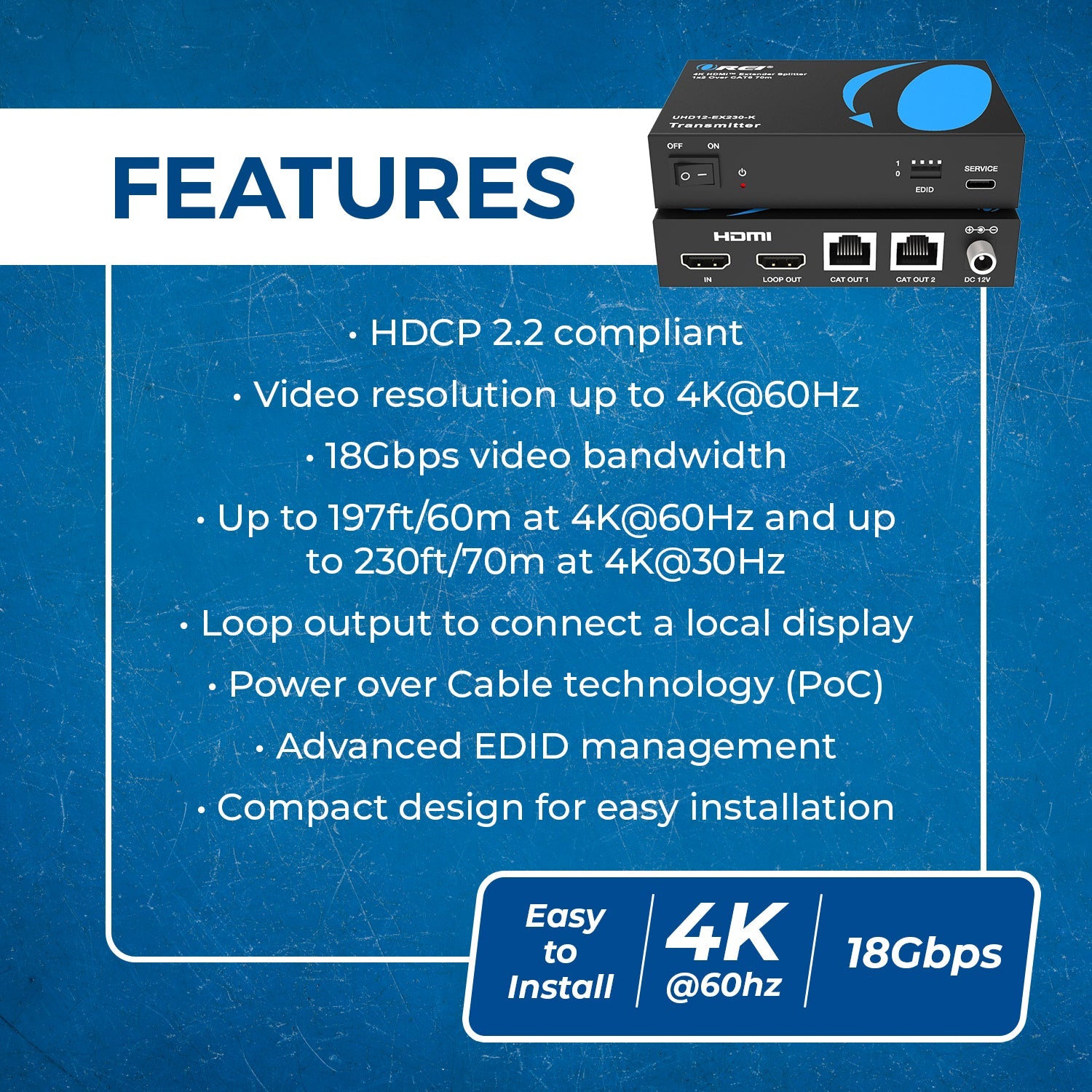

Key Features:
- HDCP 2.2 compliant
- Video resolution up to 4K@60Hz
- 18 Gbps video bandwidth
- Extend media up to 197ft/60m at 4K@60Hz and up to 230ft/70m at 4K@30Hz
- Loop output to connect a local display

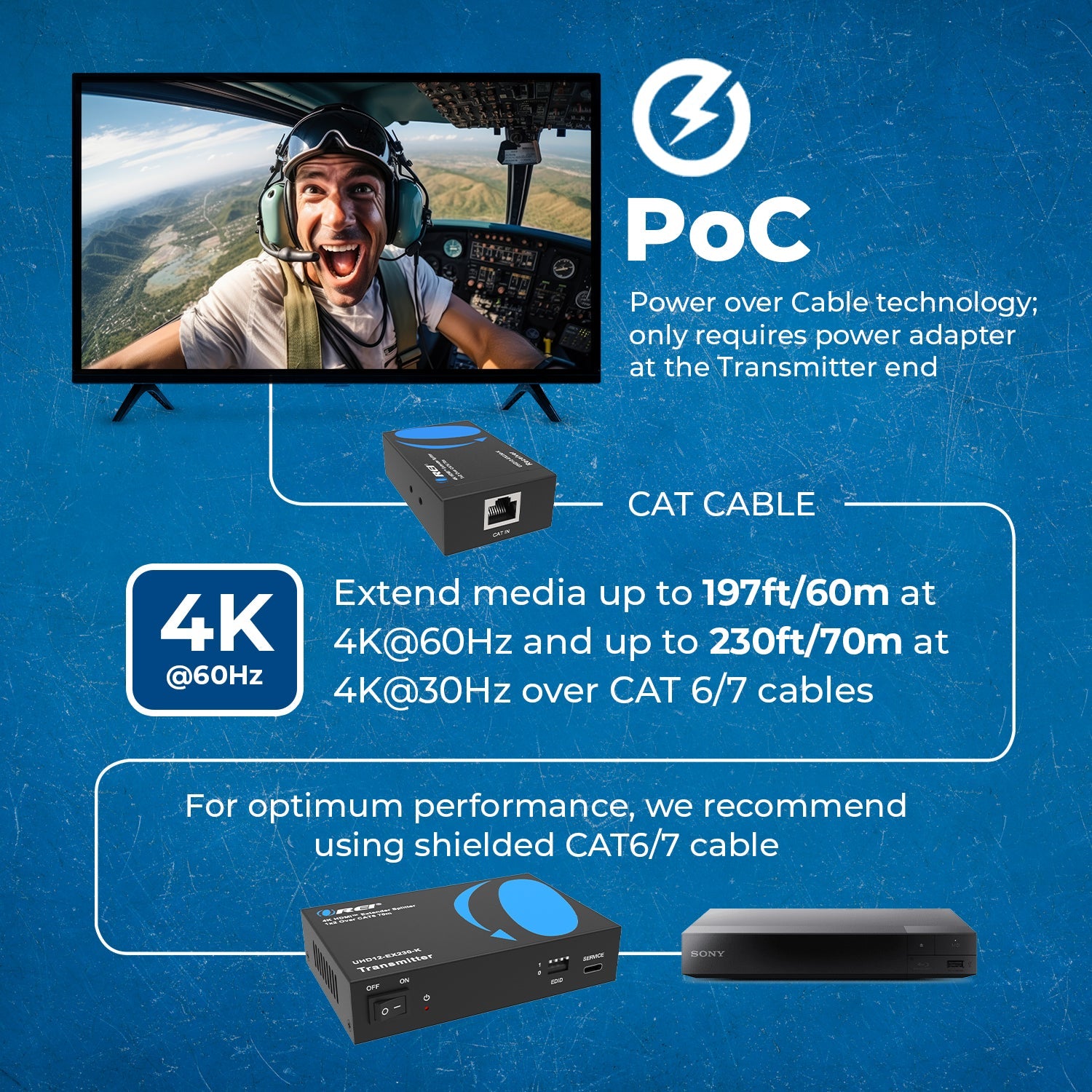

- Power over Cable technology only requires a power adapter at the Transmitter end
- Advanced EDID management
- Compact design for easy installation

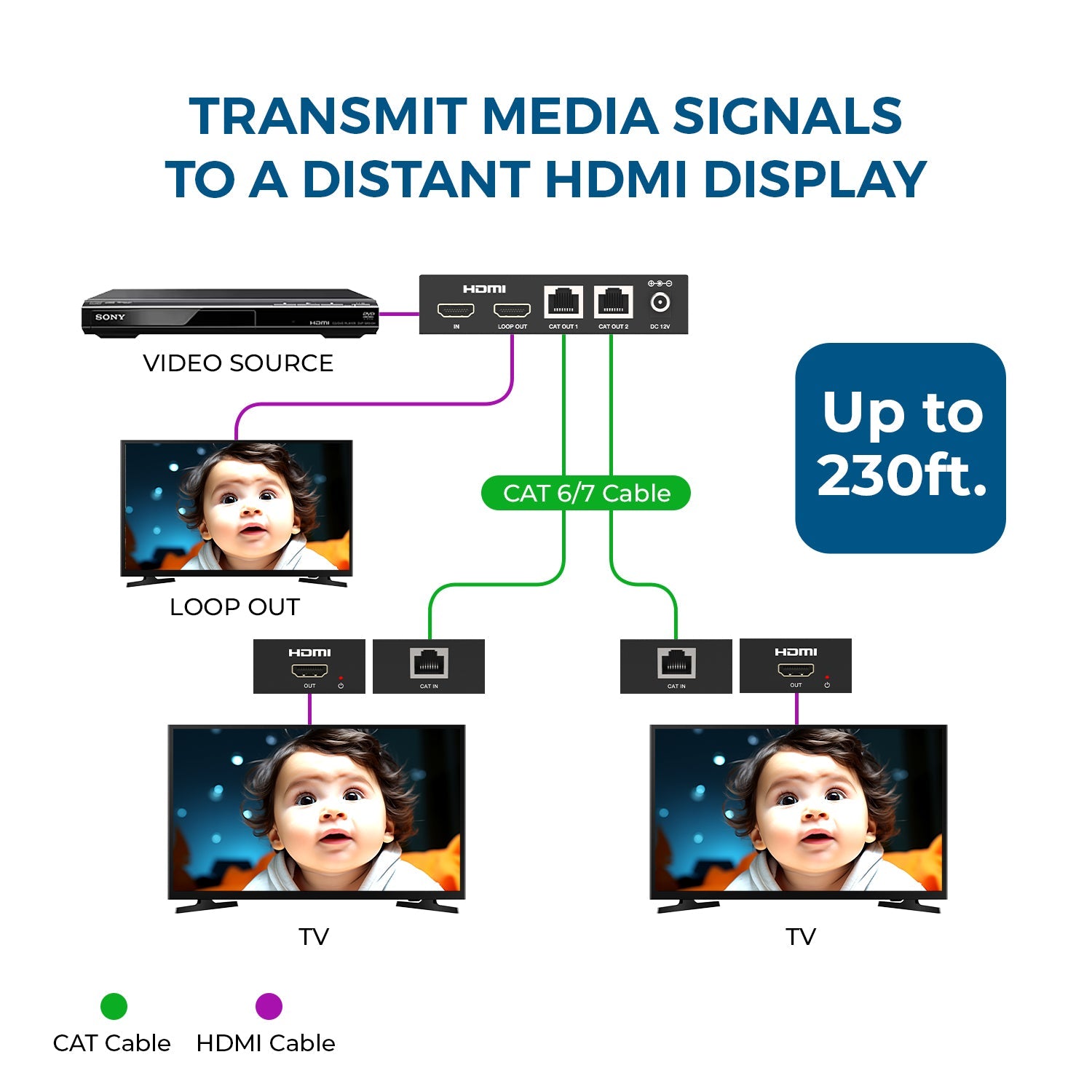

The UHD12-EX230-K HDMI Extender Splitter allows you to send media up to 230ft away at 4K resolution over CAT6/7 cables. It is HDCP 2.2 compliant with 18 Gbps video bandwidth. Extend media up to 230ft/70m at 4K@30Hz and 197ft/60m at 4K@60Hz. HDMI loop output at the Transmitter allows you to connect a display near the source. Advanced EDID management allows better compatibility. Power over cable technology simplifies installation as only one power adapter is needed, which connects to the Transmitter. Its compact design makes it ideal for any personal or commercial setup.
CONNECTIVITY

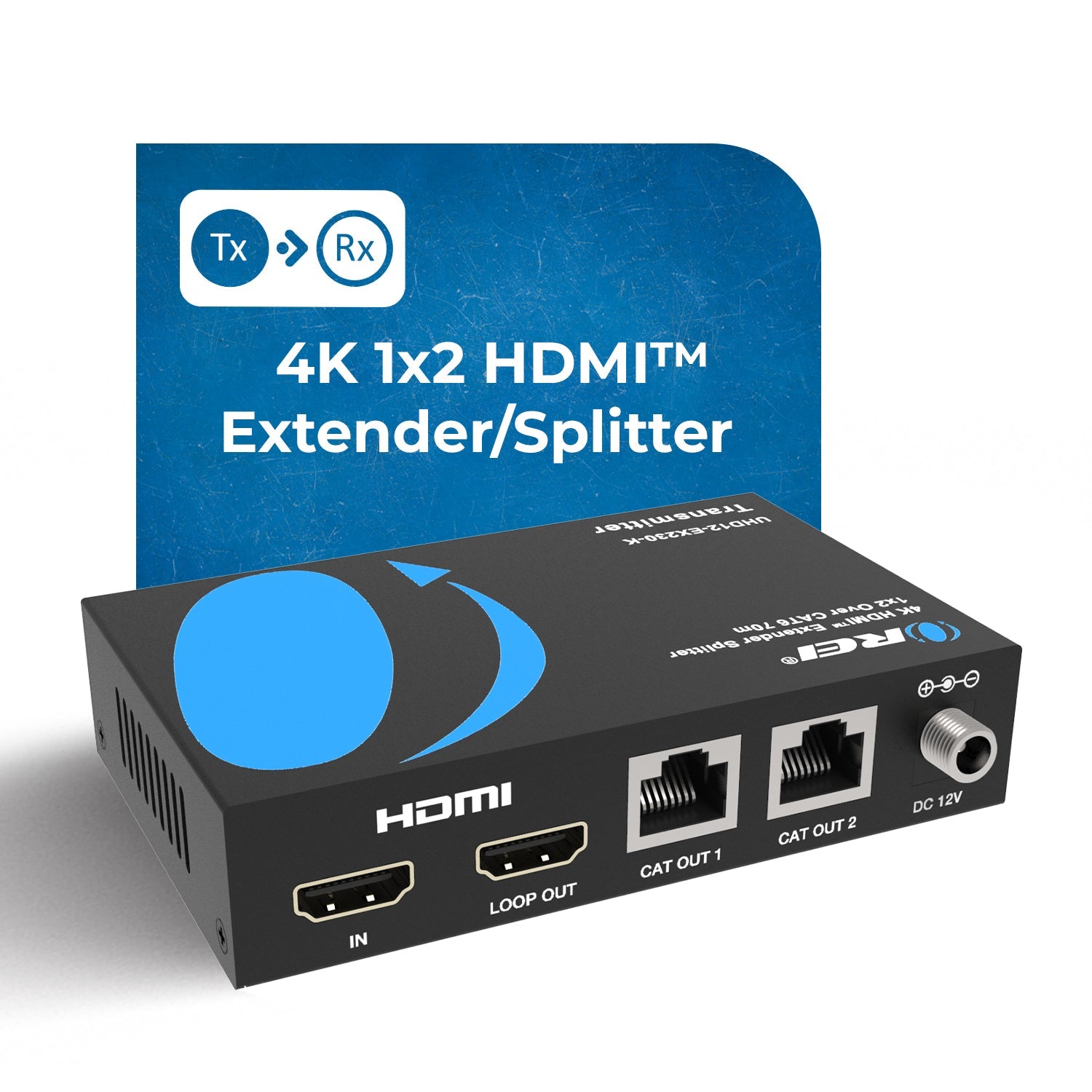

| Transmitter: | INPUT: | 1× HDMI [Type A, 19-pin Female] |
| OUTPUT: | 1× HDMI [Type A, 19-pin Female] | |
| 2× CAT [RJ45] | ||
| CONTROL: | 1× USB-C [Update port] | |

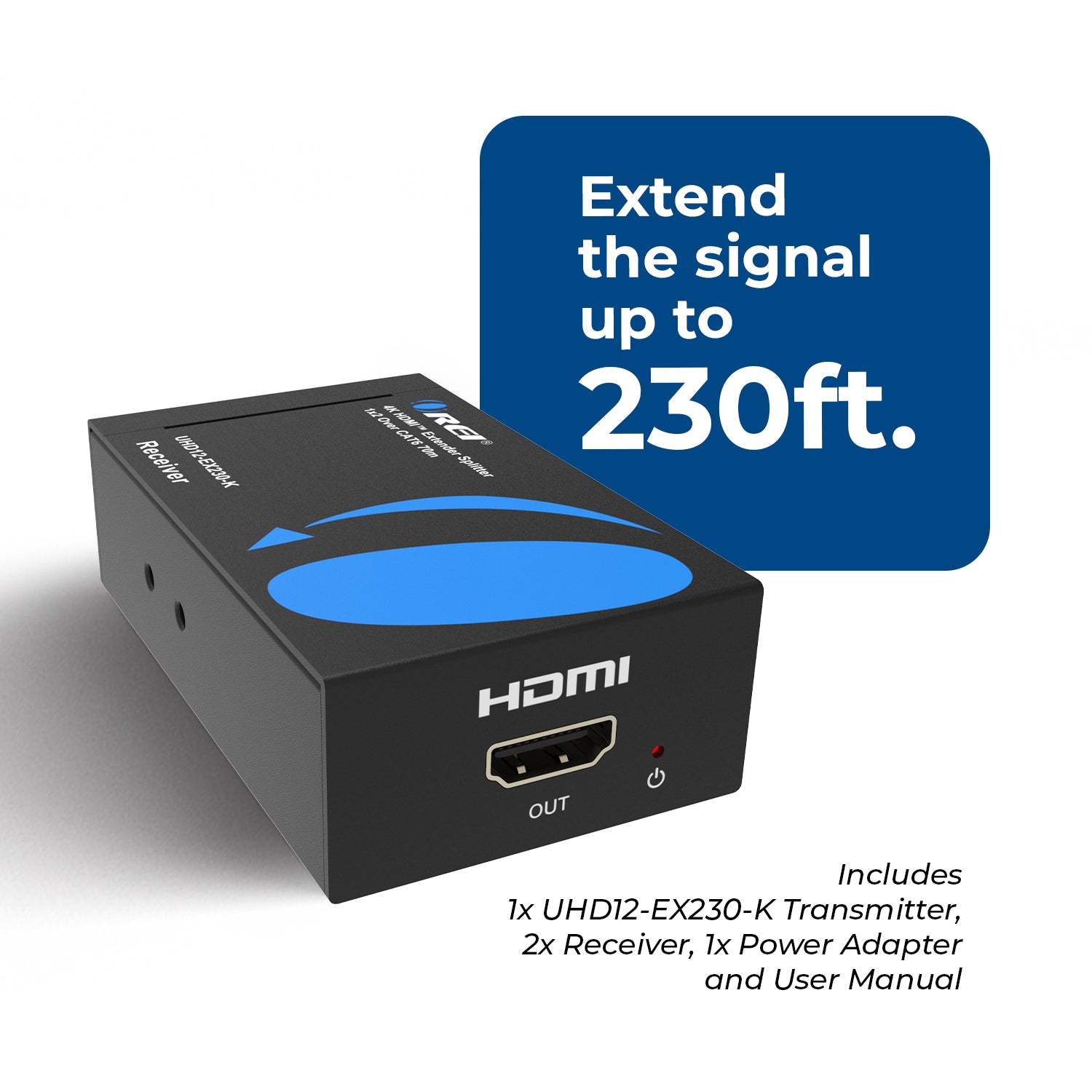

| Receiver: | INPUT: | 1× CAT [RJ45] |
| OUTPUT: | 1× HDMI [Type A, 19-pin Female] |

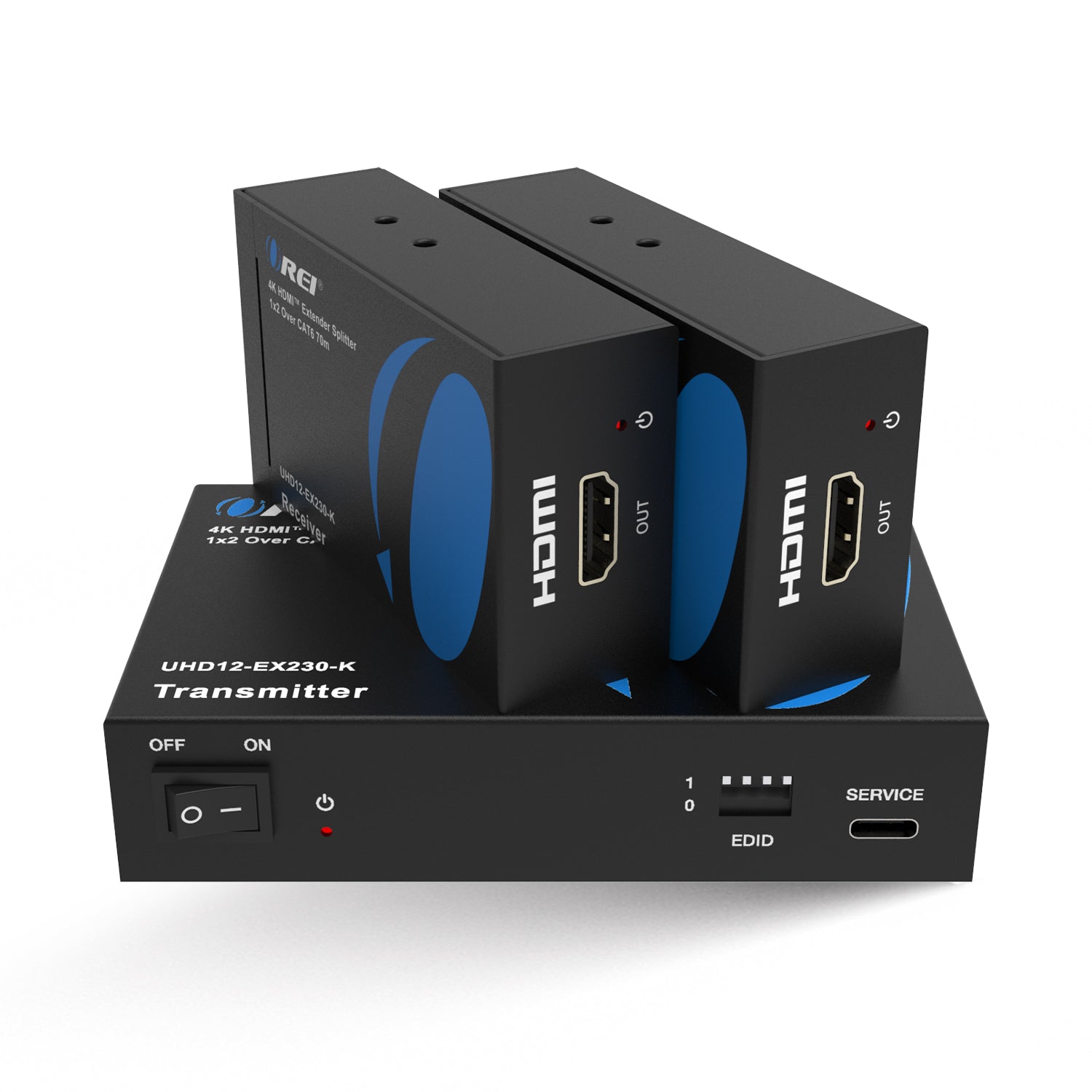

PACKAGE CONTENTS
| 1x Transmitter |
| 2x Receiver |
| 6x Mounting ear |
| 12x Screws (KM3*4) |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30HZ: | 230 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | LHDMI Loop Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Remote End: LPCM 2.0, Dolby 5.1, DD+7.1, DTS 5.1 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 7.4W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |

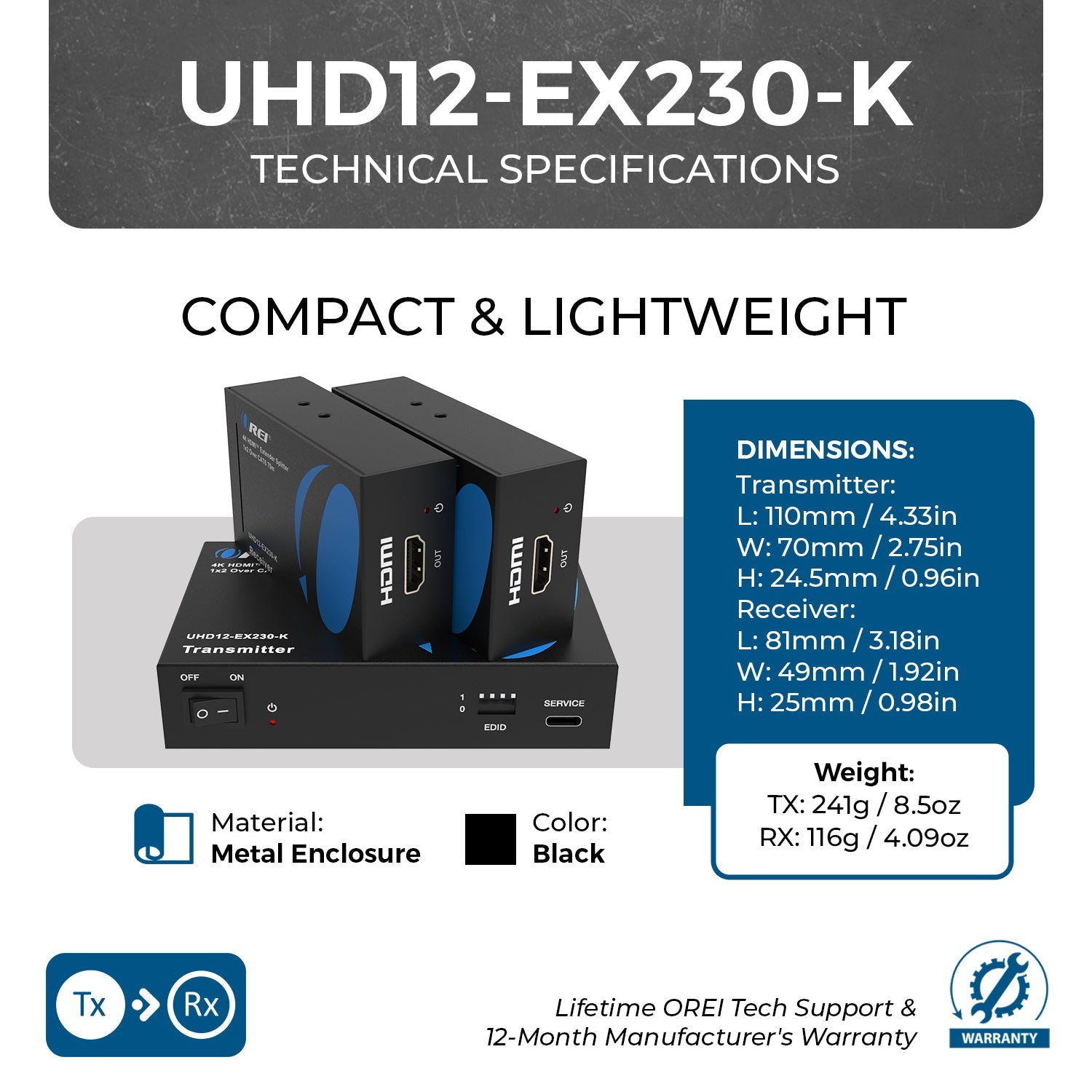

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 110mm / 4.33in |
| Width: | 70mm / 2.75in | |
| Height: | 24.5mm / 0.96in | |
| Weight: | 241g / 8.5oz | |
| Receiver: | Length: | 81mm / 3.18in |
| Width: | 49mm / 1.92in | |
| Height: | 25mm / 0.98in | |
| Weight: | 116g / 4.09oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer’s Warranty |
