OREI 4K KVM Extender over Cat6/7 w/ HDBaseT – eARC & IR Control upto 350Ft – UHD-EXB350AU-K

KVM function
eARC/ARC function
Bi-directional IR Signal & POC (Power Over Cable)

₹55,901.00 ~~₹69,876.00~~

Compare

OREI UHD-EXB350EAU-K: HDBaseT HDMI Extender upto 350 ft

Key Features:

HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
Uncompressed 4K@60Hz and 2K@60Hz up to 18Gbps video bandwidth
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
DTS High Res, DTS-HD Master Audio, DSD pass-through
Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable
Supports eARC/ARC function (the audio is returned to the HDMI IN port,
HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
Supports SPDIF audio reverse transmission
Bi-directional IR, RS-232, and 1G Ethernet signal pass-through
Supports USB2.0 transmission, Host/Device is configurable
Bi-directional 24V POC function

UHD-EXB350EAU-K is an 18Gbps HDBaseT Extender that can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals
up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX’s HDMI output pass through to TX’s HDMI input or de-embedding to TX’s HDMI audio only and SPDIF output ports, USB 2.0 (Host/device is configurable), and bi-directional POC.

The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long-distance capability and is the perfect solution for home/commercial application

SKU: UHD-EXB350EAU-K Categories: Extenders (Balun), Hdbaset, HDMI Extenders (Cat Cable)

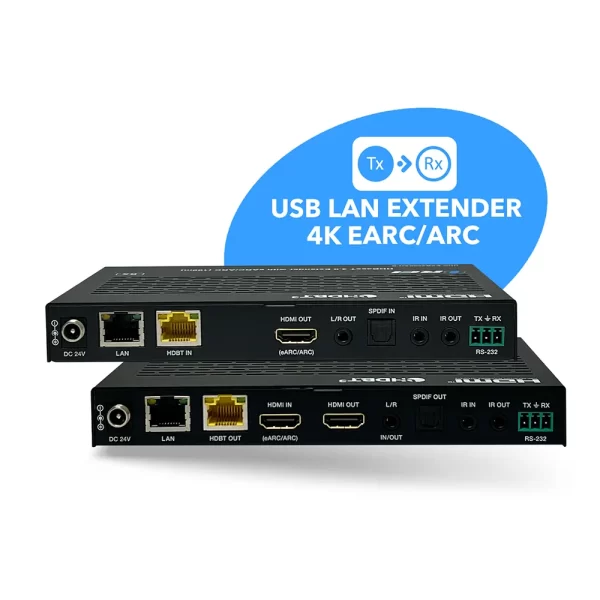

CONNECTIVITY

Transmitter:	Input Ports:	1 x HDMI Type A [19-pin female]
		1 x IR IN [3.5mm Stereo Mini-Jack]
		1 x RS-232 [3-pin Phoenix jack]
		2 x USB DEVICES [USB Type A]
		1 x USB HOST [USB Type B]
		1 x LAN [RJ45]
		1 x Micro-USB [Service Port]
	Output Ports:	1 x HDBT OUT [RJ45]
		1 x HDMI Type A [19-pin female]
		1 x IR OUT [3.5mm Stereo Mini-Jack]
		1 x Optical Out [S/PDIF]
		1 x L/R OUT [3.5mm Stereo Mini-Jack]
Receiver:	Input Ports:	1 x HDBT IN [RJ45]
		1 x IR IN [3.5mm Stereo Mini-Jack]
		2 x USB 2.0 [USB Type A]
		1 x Optical In [S/PDIF]
		1 x LAN IN [RJ45]
		1 x RS-232 [3-pin Phoenix]
		1 x USB HOST [USB Type B]
		1 x Micro-USB [Service Port]
	Output Ports:	1 x HDMI Type A [19-pin female]
		1 x L/R OUT [3.5mm Stereo Mini-Jack]

AUDIO AND VIDEO

Video Bandwidth:	18 Gbps
Video Resolutions:	Up to 4K@60Hz 4:4:4
Color Space:	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth:	8/10/12-bit
HDMI Audio Formats:	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
S/PDIF Audio Formats:	LPCM2.0, AC3 5.1, DTS 5.1
L/R Audio Formats:	PCM 2.0

COMPLIANCES

HDMI Compliance:	HDMI 2.0b
HDCP Compliance:	HDCP 2.2
USB Version:	USB 2.0

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

330 Feet

FUNCTIONS

IR Control	Bi-directional IR Control
HDBaseT	HDBaseT CAT Ports
PoC	Power Over Cable; Only one power adapter is required either at the Transmitter or the Receiver end
ARC	Audio Return Channel from HDMI OUT on the Receiver
KVM	USB KVM Functionality
CEC	CEC Pass-through
RS-232	RS-232 port for serial control

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

PROTECTION

Operation Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20 – 90% RH (no condensation)
ESD Protection:	Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)

RJ-45 CONNECTOR TYPE

WE/SS 8P8C

POWER

Power Consumption (Max):	15.36W
Power Supply	Input: AC 100 – 240V 50/60Hz Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)

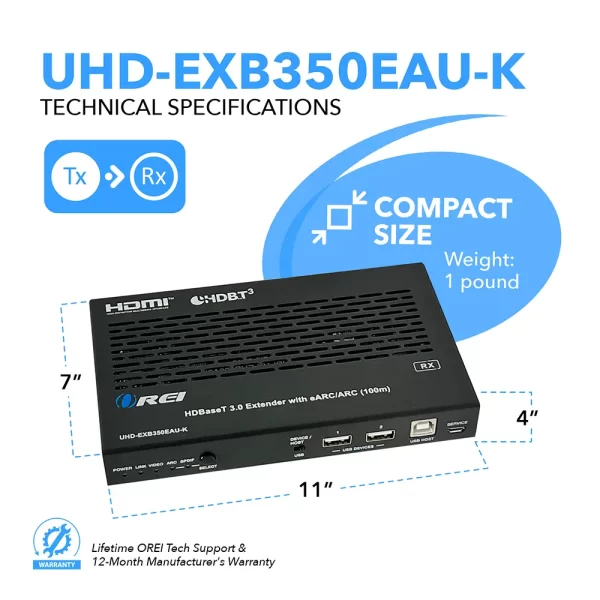

DIMENSIONS & WEIGHT

Transmitter:	Height:	22 mm
	Width:	170 mm
	Depth:	102 mm
	Weight:	425 Gm

Receiver:	Height:	22 mm
	Width:	170 mm
	Depth:	102 mm
	Weight:	437 Gm

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

PACKAGE CONTENTS

1 x Transmitter

1 x Receiver

1 x IR Blaster Cable

1 x IR Receiver Cable

2 x RS-232 3-Pin Phoenix Connector

4 x Mounting Ears

8 x Machine Screws (KM3*4)

1 x DC 24V/1A Power Adapter

1 x User Manual

WARRANTY

1 – Year Manufacturer’s Warranty
