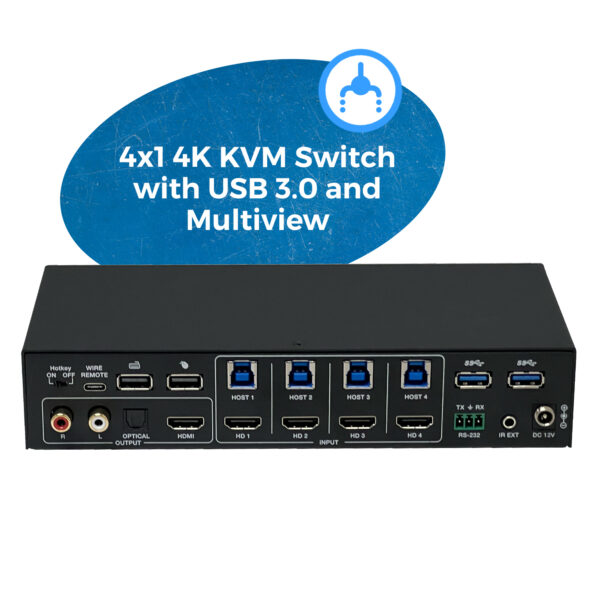

OREI 4K 4×1 KVM Switch with USB 3.0 and Multiview Functionality (UKM-401MV)
- 4 Inputs – 1 output HDMI Multiviewer switch
- Video resolution up to 4K@60Hz, 2K@60Hz
- KVM functionality
₹37,800.00 ₹41,999.00
OREI 4K 4×1 KVM Switch with USB 3.0 and Multiview Functionality (UKM-401MV)
Key Features:
- HDMI 2.0b & HDCP 2.2 compliant
- Video resolution up to 4K@60Hz and 2K@60Hz 18Gbps video bandwidth

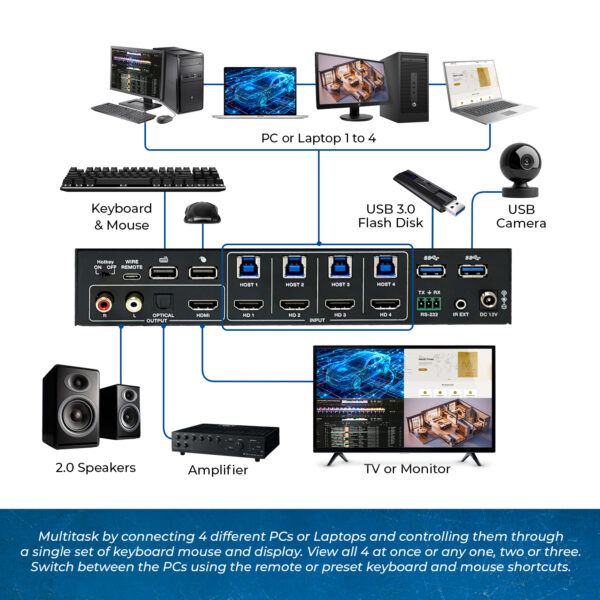

- Connect 4 computers and control them using a single set of Keyboard, mouse and display.
- Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam, and hard disk between computers

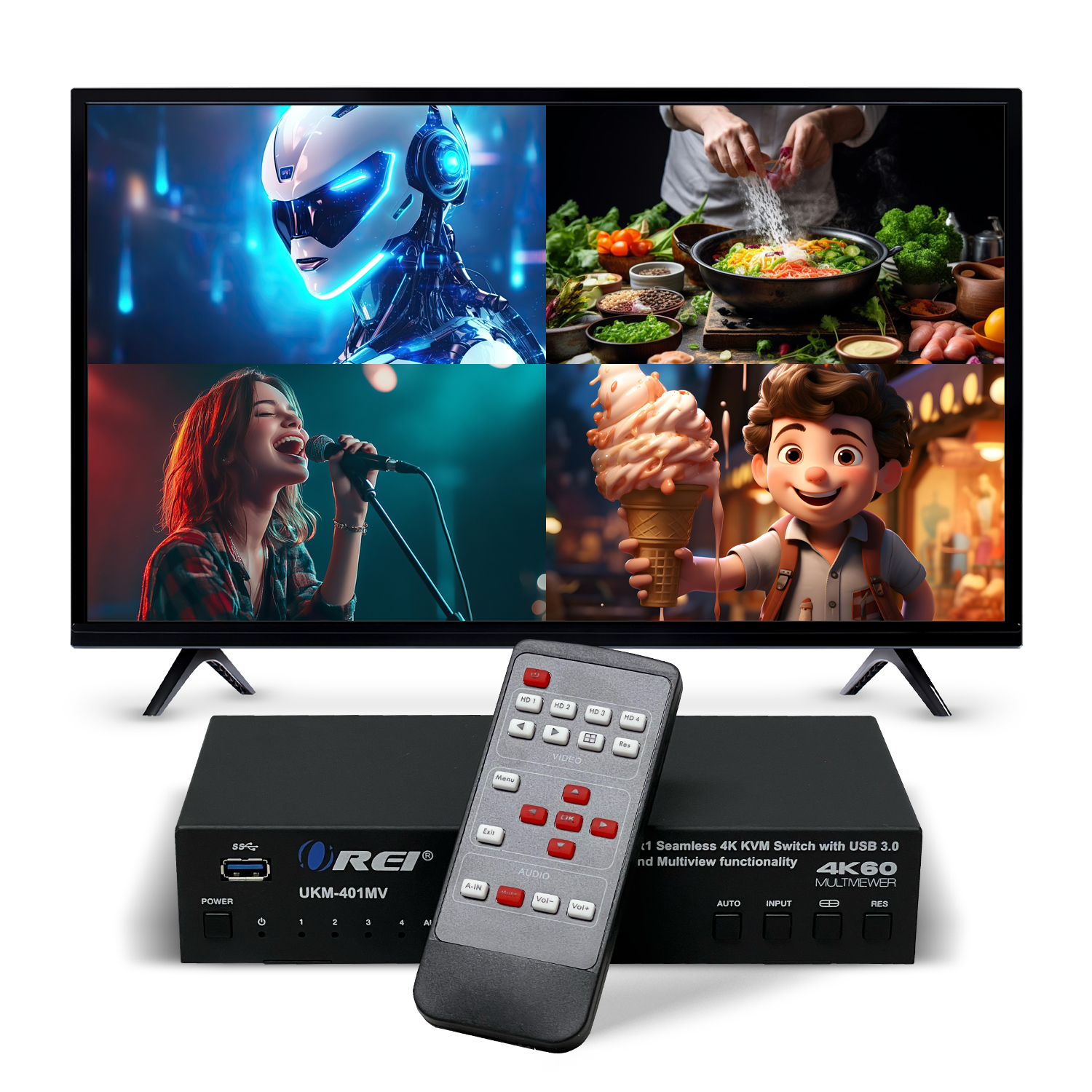

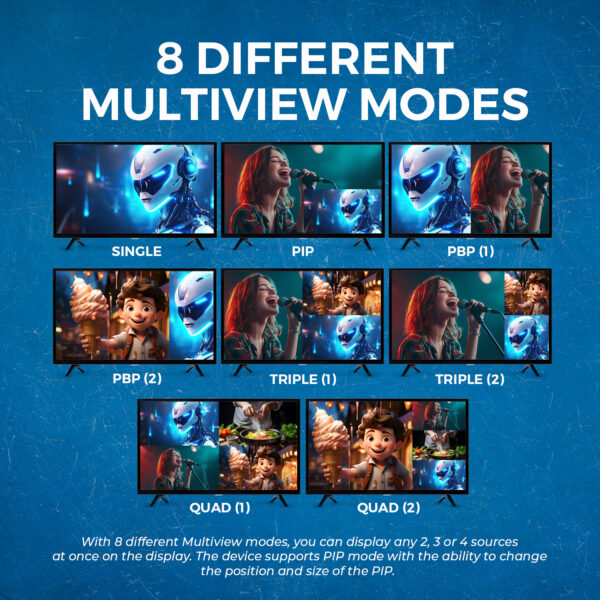

- Multiview functionality with 7 different modes
- Easily switch between PCs using the keyboard/mouse hotkeys
- Audio extraction through Optical and L/R outputs
- Select which input the audio comes from and control the volume as well.
- OSD navigation for advanced setting
- EDID management
- Control via front panel buttons, IR remote, keyboard/mouse hotkeys,
- OSD menu navigation, control software, RS-232 commands
- Compatible with Windows and MacOS
- No drivers required
- Compact design for easy and flexible installation
The UKM-401MV is a KVM Switch with 4 inputs, allowing you to access 4 computers using just one set of keyboard, mouse, and display. This device is HDMI 2.0b and HDCP 2.2 compliant, with a video bandwidth of 18Gbps and resolutions up to 4K@60Hz and 2K@60Hz. It also functions as a multi-viewer with 7 different display modes. Audio extraction is available through its optical and L/R ports. It features a built-in 3-port USB 3.1 Gen 1 hub for super-fast data transfer rates up to 5Gbps. Control the device via panel buttons, an IR remote, Keyboard and Mouse hotkeys, the OSD menu, or RS-232 commands. This device is compatible with both Windows and Mac, with no additional drivers needed for a simple plug-and-play setup. Its compact design makes it perfect for both commercial and personal uses.
CONNECTIVITY
| Input: | 4×HDMI Type A [19-pin female] |
| Output: | 1×HDMI OUT Type A [19-pin female] |
| 1 x L/R [Stereo, RCA] | |
| 1 x OPTICAL [S/PDIF] | |
| Control Ports: | 1 x RS-232 [3pin phoenix connector] |
| 1 x IR Ext [3.5mm Stereo Mini-jack] | |
| 4 x USB 3.0 HOST [USB Type B] | |
| 2 x USB 2.0 DEVICE [USB Type A] | |
| 3 x USB 3.0 DEVICE [USB Type A] |
AUDIO AND VIDEO
| Video Bandwidth: | 18Gbps |
| Video Resolution: | Up to 4K@60Hz and 2K@60Hz |
| Audio Formats: |
HDMI: PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, Analog audio [3.5mm L/R]: PCM 2.0 SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM 2.0 Note: It does not support HBR audio.
|
| Color Depth: | 8/10/12 bit |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
COMPLIANCE
| HDMI Compliance: | HDMI 2.0b |
| HDCP Compliance: | HDCP 2.2 |
POWER
| Power Supply: | Input: AC 100 – 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption (Max): | 18.48W |
FUNCTIONS
| RS-232 | Command control via RS-232 |
| Multiview | Display all 4 sources in separate windows on the same display |
PROTECTION
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (Non-condensing) |
| ESD Protection: | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |

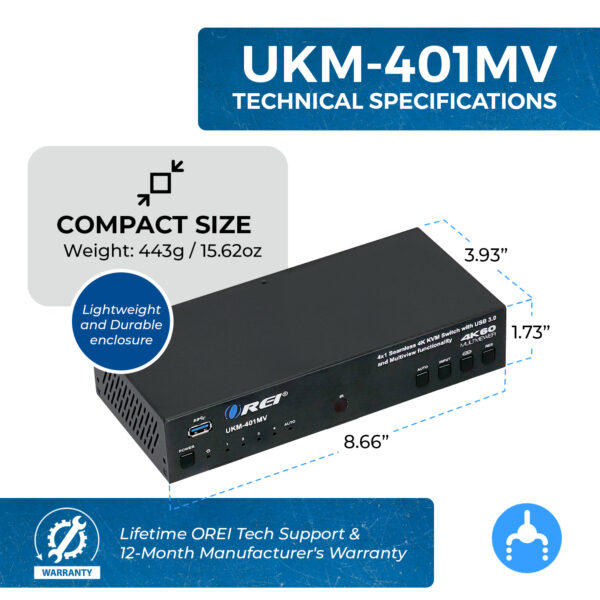

DIMENSIONS & WEIGHT
| Length: | Â 220mm / 8.66in |
| Width: | 100mm / 3.93in |
| Height: | 44mm / 1.73in |
| Weight: | 443g / 15.62oz |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |

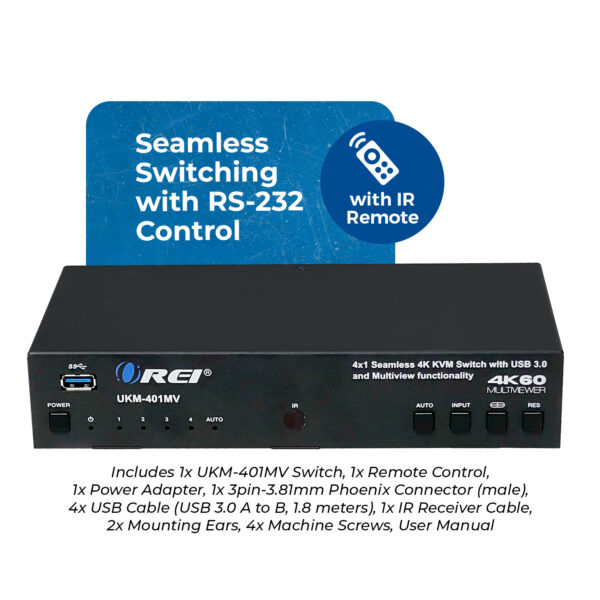

PACKAGE CONTENTS
| 1 × UKM-401MV 4×1 Multiviewer KVM Switch |
| 1 × IR Remote |
| 1 x 3pin-3.81mm Phoenix Connector (male) |
| 1 x IR Receiver Cable (1.5 meters) |
| 2 x Mounting Ears |
| 4 x Machine Screw (KM3*4) |
| 4 x USB Cable (USB 3.0 A to B, 1.8 meters) |
| 1 x Power Adapter |
| User Manual |
Warranty
| 1 – Year Manufacturer’s Warranty |
