-20%
Extenders (Balun), HDMI Extenders (Cat Cable)

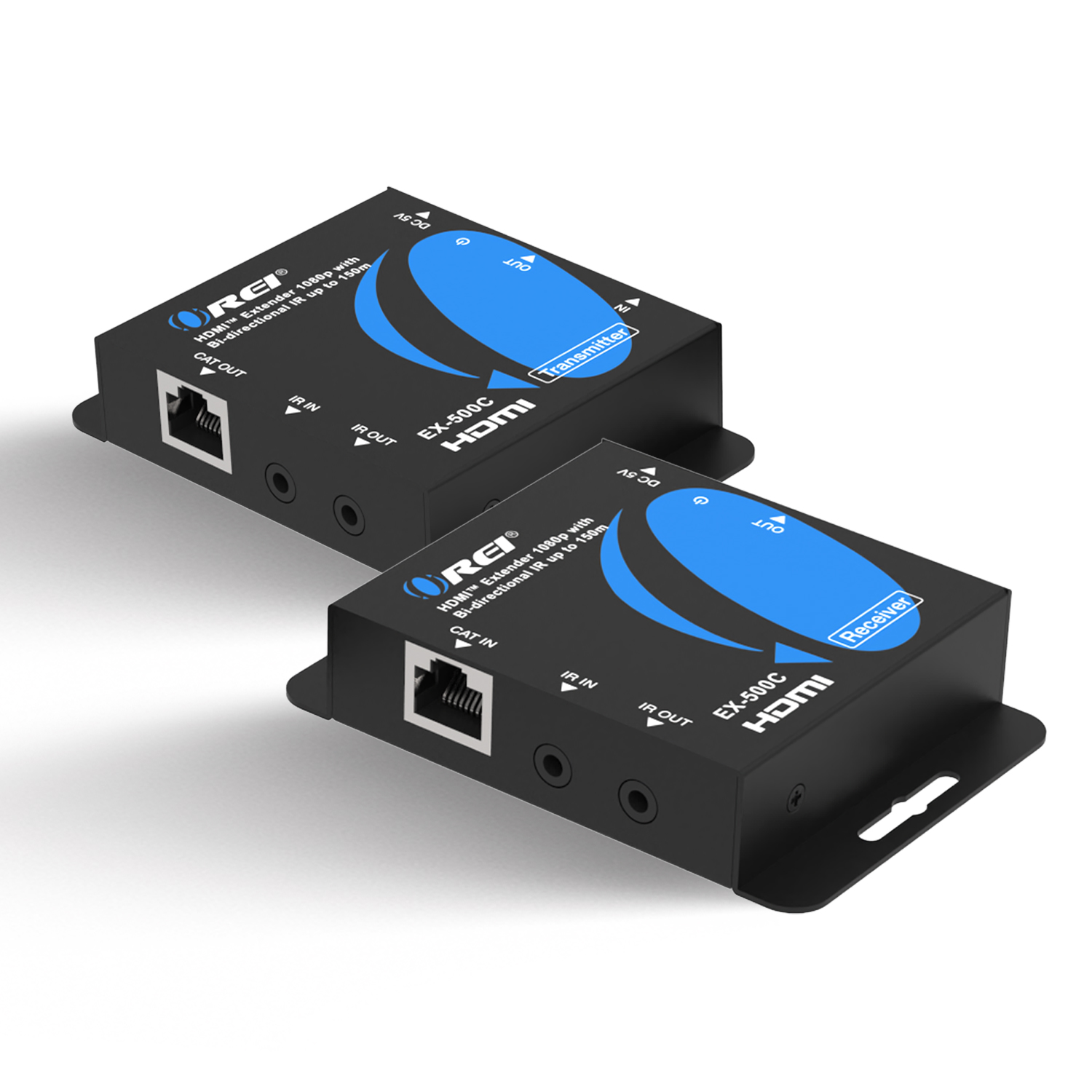

OREI 1080p HDMI Extender with Bi-directional IR up to 150m (EX-500C)
Availability:
Out of stock
- HDMI 1.3 & HDCP 1.4
- Video resolution up to 1080p@60Hz
- Bi-directional IR control
₹8,713.00 ₹10,891.00
Out of stock

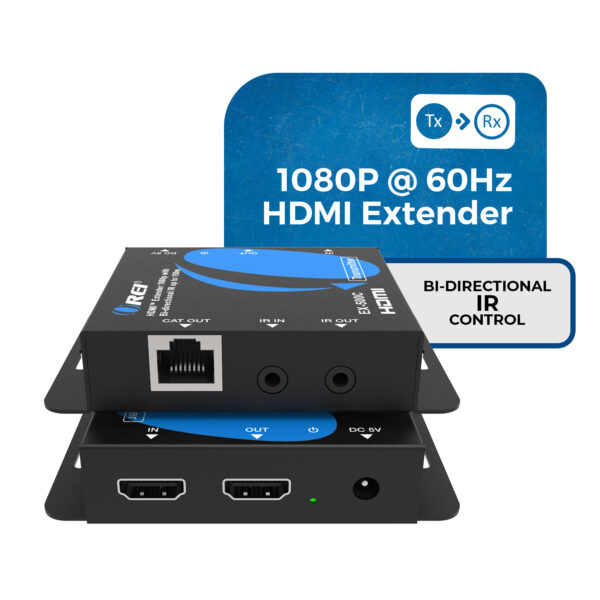

CompareOREI EX-500C: HDMI Extender over Ethernet (150m) with Bi-directional IR
Key Features:
- HDMI 1.3 & HDCP 1.4 compliant
- Video resolution up to 1080p@60Hz
- 4.95Gbps video bandwidth

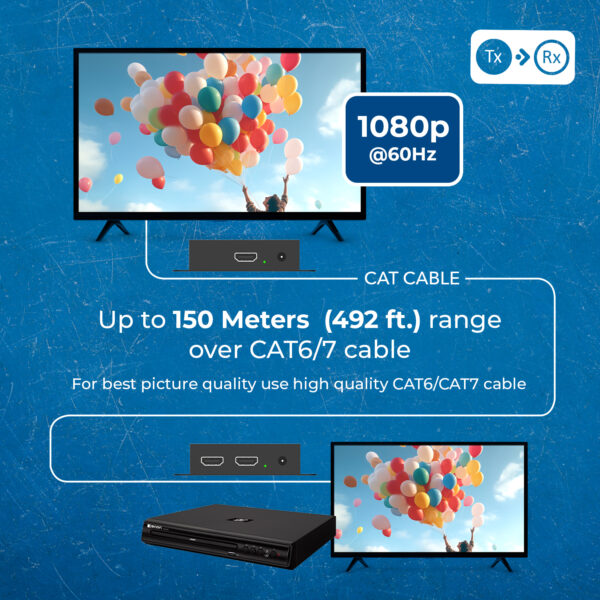

- Extend media signal up to 150m/492ft over a CAT 6/7 cable
- HDMI loop out at the Transmitter to connect a local display
- Bi-directional IR control
- PCM2.0 audio support
- Compact and rugged design

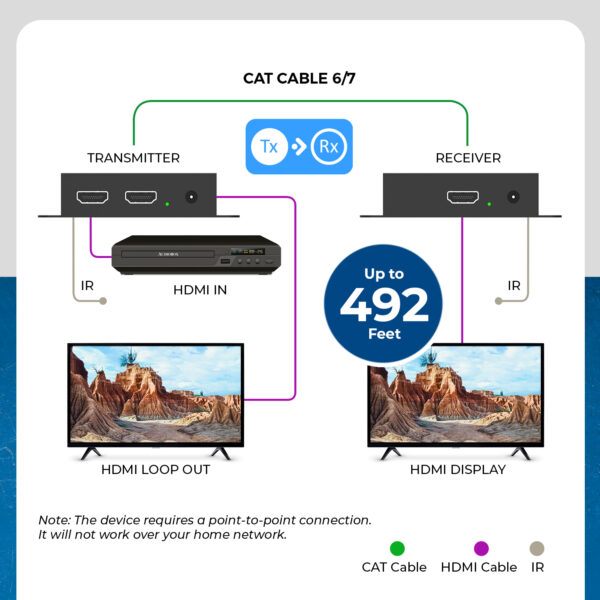

The EX-500C HDMI Extender can extend media signals up to 150m/492ft over CAT6/7 cable at 1080p@60Hz. It is HDMI 1.3 & HDCP 1.4 compliant, offering a 4.95Gbps video bandwidth. The Transmitter includes an HDMI Output for a local display connection. Bi-directional IR control makes it easy to control the connected devices from either location. Its compact and rugged design makes it ideal for both home and commercial use.
CONNECTIVITY
| Transmitter: | INPUT: | 1× HDMI [Type A, 19-pin female] |
| OUTPUT: | 1× HDMI [Type A, 19-pin female] | |
| 1× CAT [RJ45] | ||
| CONTROL: | 1× IR IN [3.5mm audio jack] | |
| 1× IR OUT [3.5mm audio jack] | ||
| Receiver: | INPUT: | 1× CAT [RJ45] |
| OUTPUT: | 1× HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× IR IN [3.5mm audio jack] | |
| 1× IR OUT [3.5mm audio jack] |

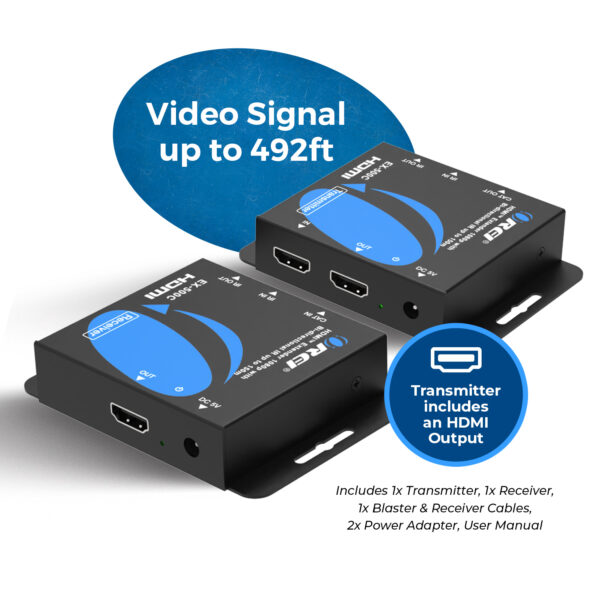

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster Cable (1.5m) |
| 1x IR Receiver Cable (1.5m) |
| 2x Power Adapter |
| 1x User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080P@60Hz: | 500 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 4.95Gbps |
| Video Resolutions: | Up to 1080p@60Hz, 1920×1200@60Hz |
| Color Space: | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth: | 8-bit |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | Transmitter: 1.5W (Max); Receiver: 1.35W (Max) | |
| Power Supply: | DC 5V/1A |

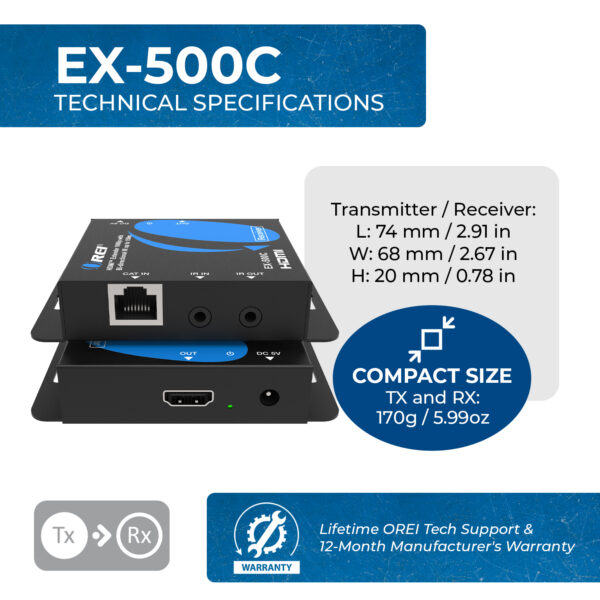

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 74mm / 2.91in |
| Width: | 68mm / 2.67in | |
| Height: | 20mm / 0.78in | |
| Weight: | 170g / 5.99oz | |
| Receiver: | Length: | 74mm / 2.91in |
| Width: | 68mm / 2.67in | |
| Height: | 20mm / 0.78in | |
| Weight: | 170g / 5.99oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~90% relative humidity, non-condensing |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 150m/492ft for 1080p@60Hz over CAT6/6a cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
WARRANTY
| 1-Year Manufacturer’s Warranty |
