OREI 4K 1X8 HDMI Extender Splitter over Cat6/7 Up To 400 ft – Low Latency – UHD18-EXB400-K

Name: OREI 4K 1X8 HDMI Extender Splitter over Cat6/7 Up To 400 ft - Low Latency - UHD18-EXB400-K
SKU: UHD18-EXB400-K
Availability: OutOfStock

Availability:

Out of stock

Add to wishlist

Compare

Supports HDBaseT 4K@60Hz up to 400 feet
Supports digital and analog audio de-embedded output
Supports one-way PoC function (only from transmitter to receiver), one-way IR control signal pass-through

₹123,599.00 ~~₹125,880.00~~

Out of stock

Compare

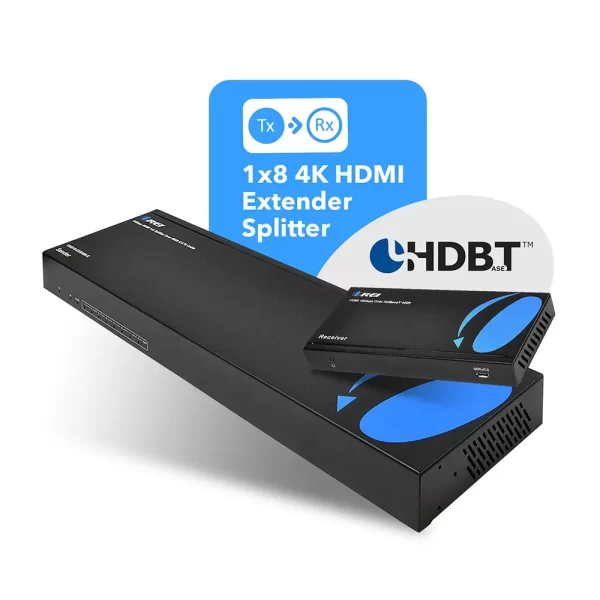

OREI UHD18-EXB400-K: UltraHD 1×8 Extender Splitter HDBaseT upto 400 Feet

Key Features:

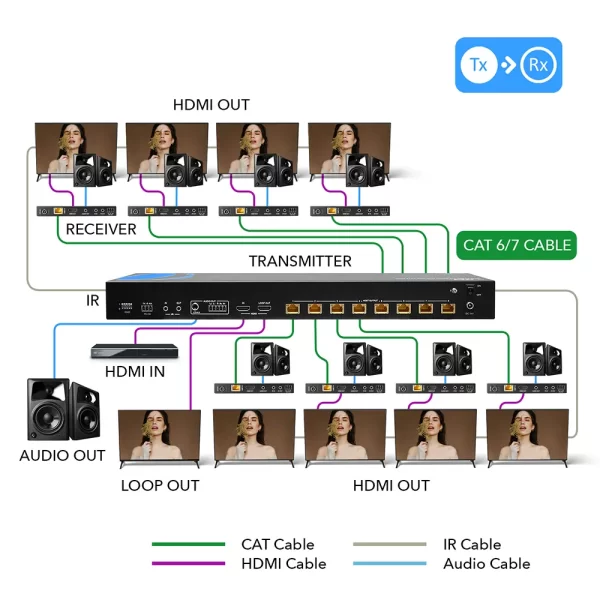

Distribute 4K 1 HDMI source to 8 HDMI displays over Cat6/7/8 Network Cable simultaneously
Splitter Included – No Switcher Needed – Power Over LAN – No Adapter needed on Receiver Side
HDBaseT Technology for lossless and lag-free video transmission
Output 4K signal up to 400 Feet with Cat6/7 cable and 1080p signal up to 500 Feet
HDMI Transmitter is equipped with 8 Port CAT6 Output
1 Additional HDMI Output to connect to a local display or monitor
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
Loop Out on Sender Unit
Full IR Remote Control Input
Supports 20~60Hz IR Pass Back
Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
Supports 18Gbps Bandwith
HDMI 2.0a HDCP 2.2, UHD 4K/60Hz YUV 4:4:4, HDR, HDR10+, Dolby Vision, PoC
HDR gives you higher contrast and vivid colors
Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio, and all other HDMI standard formats
Compatible with CAT6/6a/7 Network Cables
The highest Resolution Supported is 3840x2140p@60Hz
Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.
Plug & Play Setup without any Software Installation
This unit requires only one power adapter to work

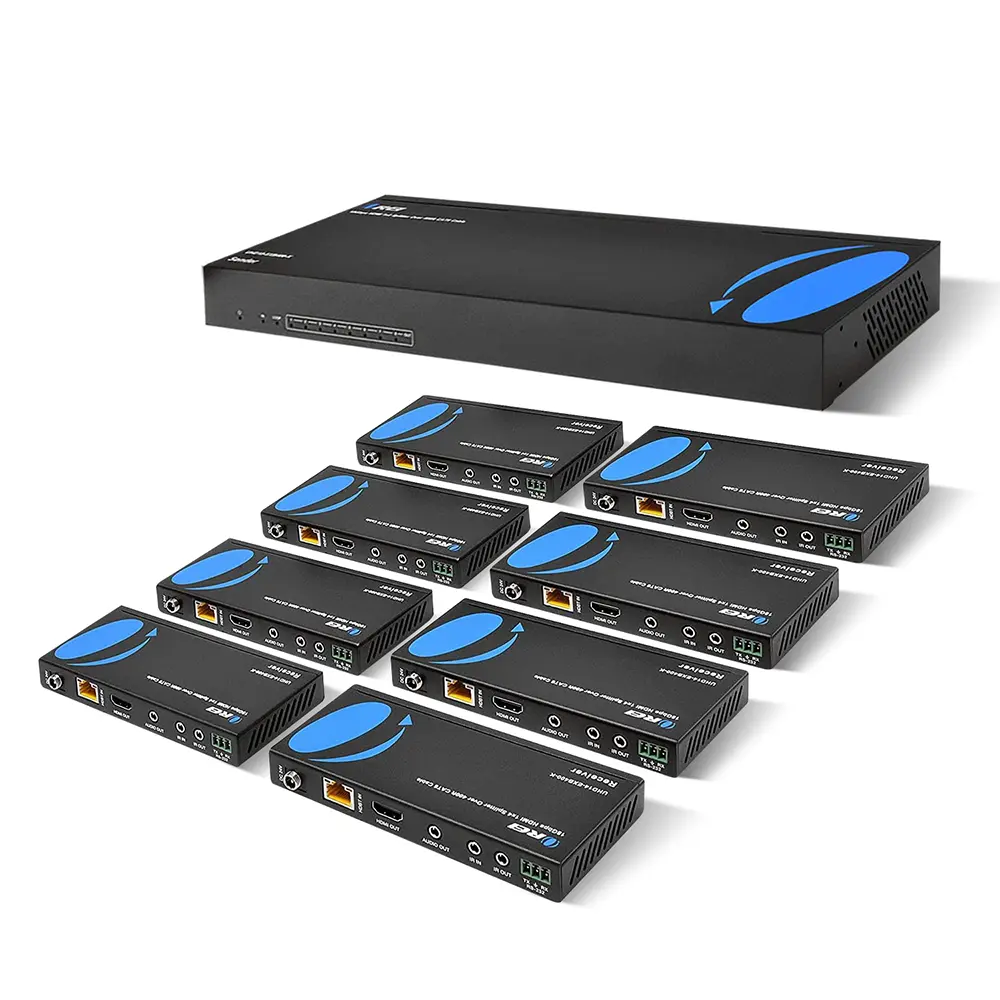

This Orei UHD18-EXB400-K HDMI extender splitter includes one transmitter and eight receivers, extend 1 HDMI source to 8 HDMI displays over a single CAT6/6a/7 cable up to 400 at 4K signal, or up to 500 Feet with 1080P. Perfect for Bars, Restaurants, in-home entertainment system. Advanced EDID Management.

Resolution Supported: 4K@60Hz, 4K@30Hz, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz.

HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X.

Coaxial Audio Formats: PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1.

Analog Audio Formats: PCM 2.0CH.

SKU: UHD18-EXB400-K Categories: 8 Outputs, Extenders (Balun), HDMI Extender Splitter, HDMI Extenders, HDMI Extenders (Cat Cable)

CONNECTIVITY

Transmitter:	Input Ports:	1 × HDMI IN [Type A, 19-pin female]
		1 x IR IN [3.5mm Stereo Mini-jack]
	Output Ports:	1 × HDMI OUT [Type A, 19-pin female]
		8 x HDBaseT OUT [RJ45]
		1 x IR OUT [3.5mm Stereo Mini-jack]
	Control Ports:	1 x RS-232 Port
Receiver:	Input Ports:	1 x IR IN [3.5mm Stereo Mini-jack]
		1 x HDBaseT IN [RJ45, 8-pin female]
	Output Ports:	1 x HDMI OUT [Type A, 19-pin female]
		1 x IR OUT [3.5mm Stereo Mini-jack]
		1 x AUDIO OUT
	Control Ports:	1 x RS-232 Port

AUDIO AND VIDEO

Video Bandwidth:	594MHz/18Gbps
Video Resolutions:	Up to 4k@60Hz 4:4:4
Color Space:	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth:	8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
HDMI Audio Formats:	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz	400 Feet
1080p@60Hz:	500 Feet

FUNCTIONS

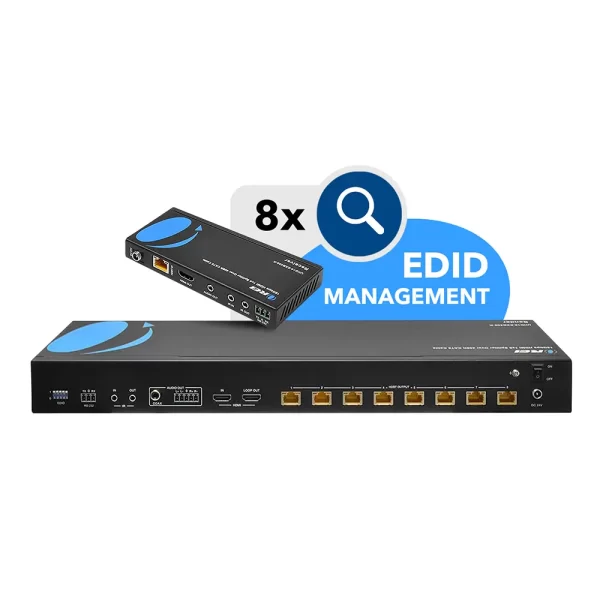

EDID:

EDID dip switch on the Transmitter with 30 built-in EDID settings

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

SIGNALS

TMDS Signals:	3.3V
DDC Signals:	5V

PROTECTION

Operation Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20~90% RH (Non-condensing)
ESD Protection:	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)

RJ-45 CONNECTOR TYPE

Type:

WE/SS 8P8C

POWER

Power Consumption (Max):	72W
Power Supply	Input: AC100 – 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standards, CE/FCC/UL certified)

DIMENSIONS & WEIGHT

Transmitter:	Height:	44 mm
	Width:	440 mm
	Depth:	130 mm
	Weight:	1.62 kg

Receiver:	Height:	18 mm
	Width:	140 mm
	Depth:	65 mm
	Weight:	246 g

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

PACKAGE CONTENTS

1 x HDMI Transmitter

8 x HDBaseT Receiver

9 x Wideband IR Blaster cable

9 x Wideband IR Receiver cable

1 x 24V/2.7A DC Locking Power Adapter

9 x 3-pin Phoenix Connector

1 x 5-pin Phoenix Connector

18 x Mounting Ear

1 x User Manual

WARRANTY

1 – Year Manufacturer’s Warranty

Downloads

Quick Setup & Installation guide

UHD18-EXB400-K User Manual Download
