4 Outputs, Extenders (Balun), HDMI Extender Splitter, HDMI Extenders, HDMI Extenders (Cat Cable), One To Many

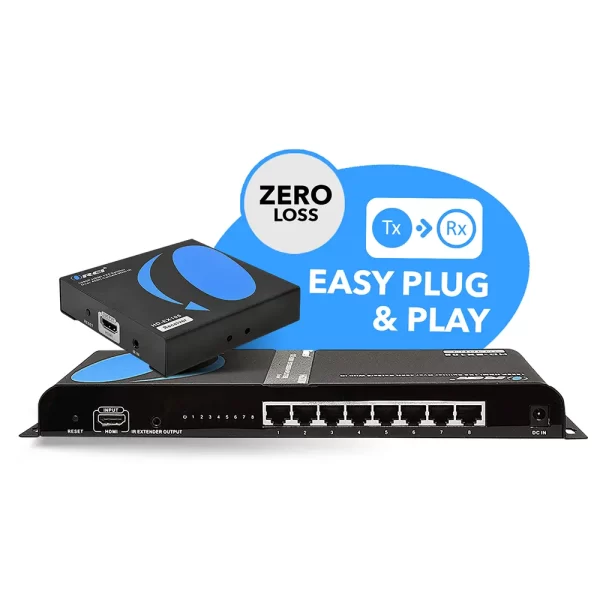

OREI HDMI Extender Splitter 1 in 8 Out Over Cat5/6 Upto 400Ft@1080 – HD-EX108
Availability:
Out of stock
- 1080p@60Hz up to 400 feet
- Over IP function
- IR Remote Control
₹52,408.00 ₹64,680.00
Out of stock
CompareOREI HD-EX108: 1×8 Extender Splitter upto 400 Feet
Key Features:
- Distribute 1 HDMI source to 8 HDMI displays over a single CAT5e/6/7 network cable simultaneously
- Full IR Remote Control Input
- Supports 20~60Hz
- IR Pass Back
- Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
- It extends HDMI audio/video signals to synchronous output video display is as fluent as a direct connection
- Surround sound up to 7.1-channel or stereo digital audio
- Compatible with CAT6/6a/7 Network Cables
- Output 1080p signal up to long-distance 400 Feet with CAT5e/6/7 cable
- Compatible with HDCP compliant devices & content
- The highest Resolution Supported is 1920×1080@60Hz
- Lossless Transmission with Minimal Latency
- Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.
- Plug & Play Setup without any Software Installation

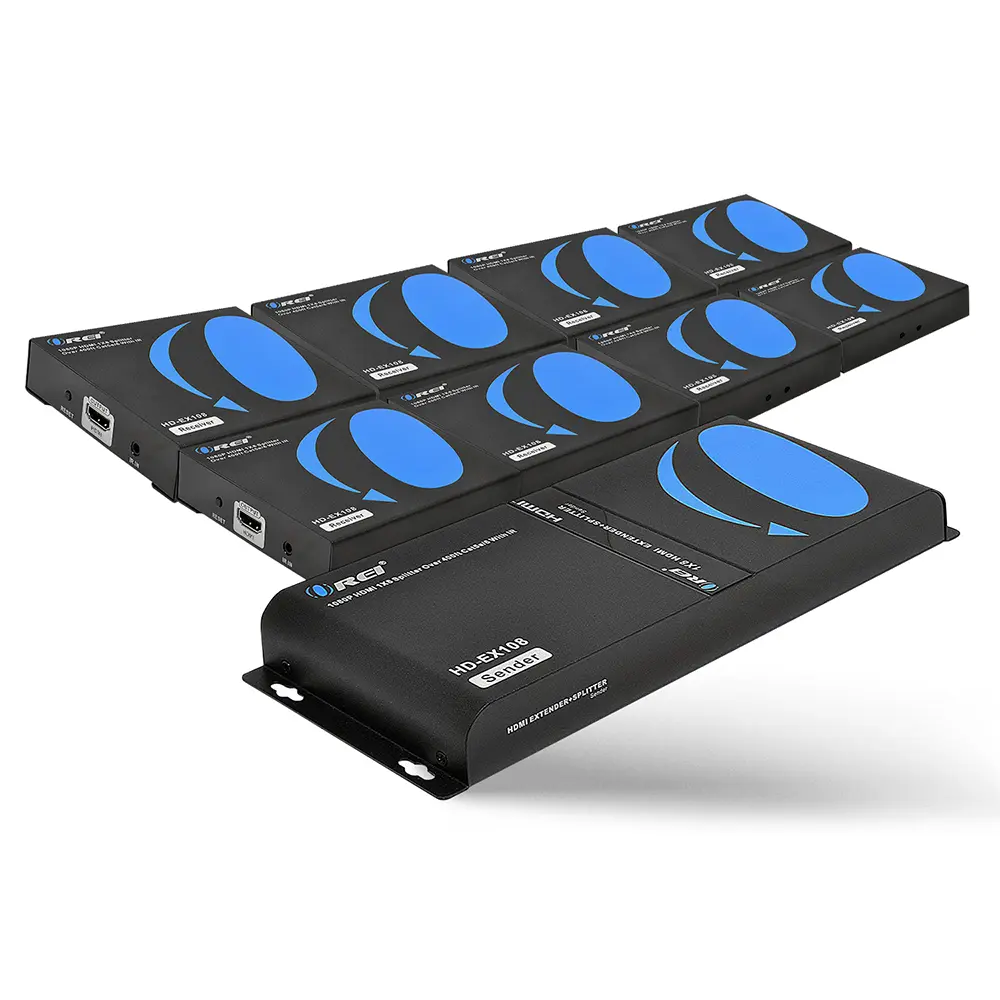

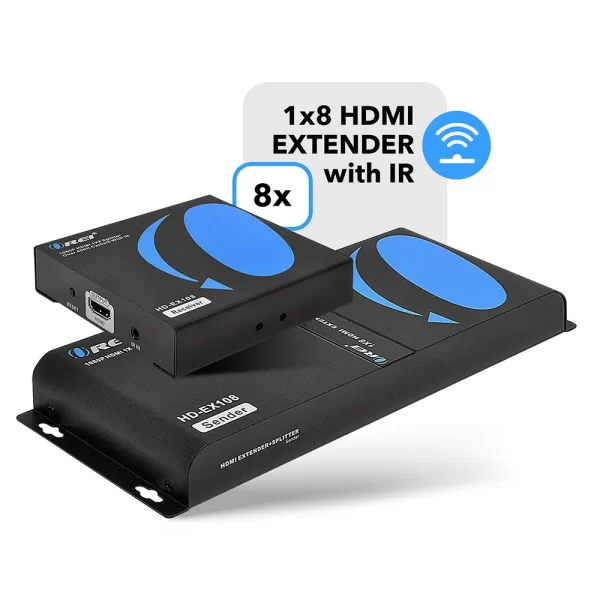

The OREI HD-EX108Â 1×8 HDMI Extender Splitter includes one transmitter and eight receivers, it extends 1 HDMI source to 8 HDMI displays over a single CAT5e/6/7 cable up to 400 Feet at 1080p. Perfect for Bars, Restaurants, In-Home entertainment system. Advanced EDID Management.
Resolution Supported : 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz.
HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Resolution, DTS-HD Master Audio, DSD.
Coaxial Audio Formats: LPCM2.0, LPCM5.1, Dolby Digital 2/5.1CH.
Analog Audio Formats: PCM 2.0.
CONNECTIVITY
| Transmitter: | Input Ports: | 1 × HDMI IN [Type A, 19-pin female] |
| Output Ports: | 8 x CAT OUT [RJ45] | |
| 1 x IR Extended OUT [3.5mm Stereo Mini-jack] | ||
| Receiver: | Input Ports: | 1 x IR IN [3.5mm Stereo Mini-jack] |
| 1 x CAT IN [RJ45] | ||
| Output Ports: | 1 x HDMI OUT [Type A, 19-pin female] |
AUDIO AND VIDEO
| Video Bandwidth: | 4.95Gbps |
| Video Resolutions: | 1080p@60Hz |
| Color Space: | RGB YCbCr |
| Color Depth: | 8-bit |
| HDMI Audio Formats: | Stereo L/R audio |
COMPLIANCES
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080p@60Hz: | 400 Feet |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
PROTECTION
| Operation Temperature: | 0～50℃ |
| Storage temperature: | -30～70℃ |
| Relative Humidity: | 0~90% RH (Non-condensing) |
| ESD Protection: | Contact discharge 4KV, Air Discharge 8KV |
RJ-45 CONNECTOR TYPE
| WE/SS 8P8C |
POWER
| Power Consumption (Max): | <24W |
| Power Supply | DC 12V/3A |

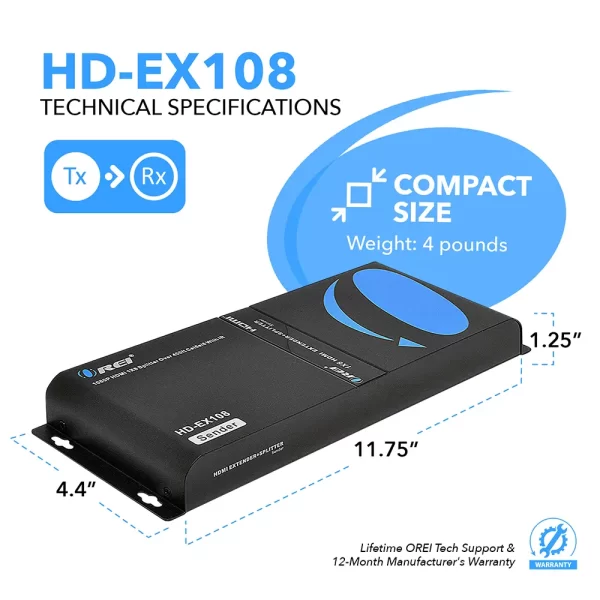

DIMENSIONS & WEIGHT
| Transmitter: | Height: | 29.6 mm |
| Width: | 299 mm | |
| Depth: | 110.7 mm | |
| Weight: | 335 g |
| Receiver: | Height: | 23.2 mm |
| Width: | 130 mm | |
| Depth: | 84 mm | |
| Weight: | 200 g |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
PACKAGE CONTENTS
| 1 x HDMI Transmitter |
| 8 x HDMI Receiver |
| 1 x Wideband IR Blaster cable |
| 1 × DC12V/3A Power Adapter |
| 1 x User Manual |
WARRANTY
| 1 – Year Manufacturer’s Warranty |
