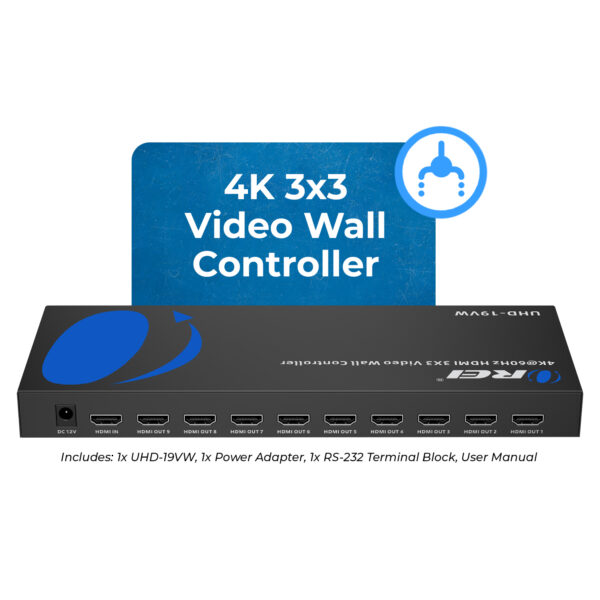

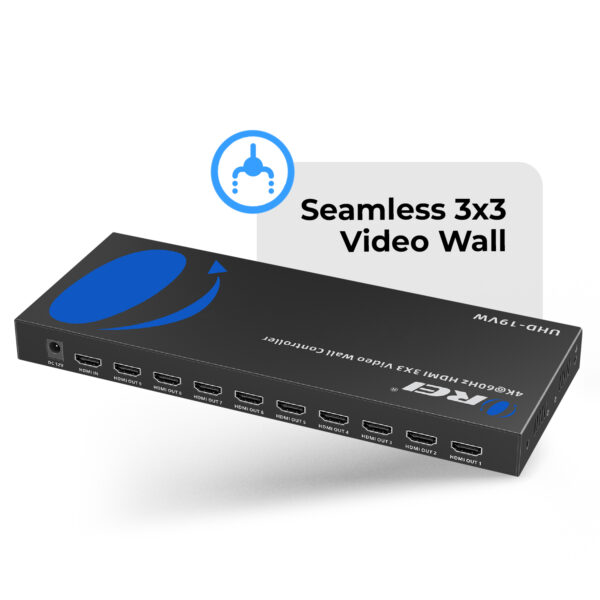

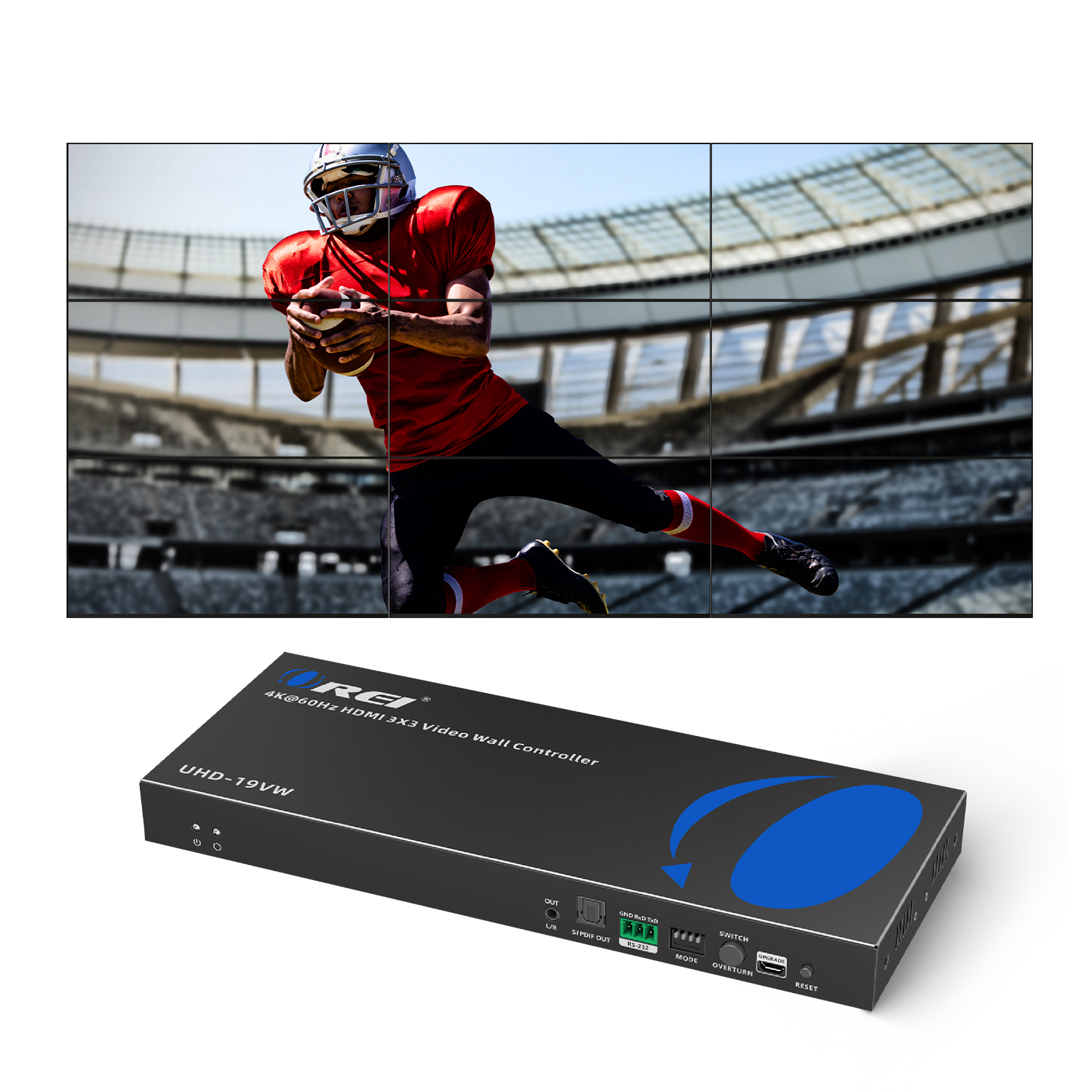

HDMI 3X3 Video Wall Controller With Micro-USB Port (UHD-19VW)

UHD-19VW: HDMI 3X3 VIDEO WALL CONTROLLER WITH MICRO-USB PORT

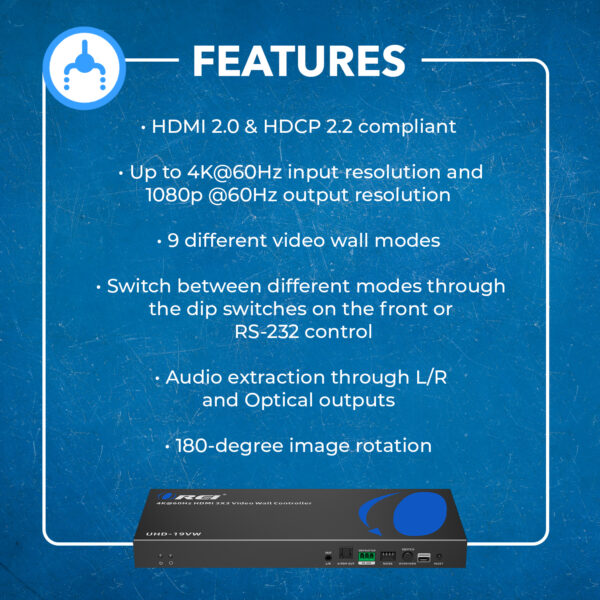

Key Features:

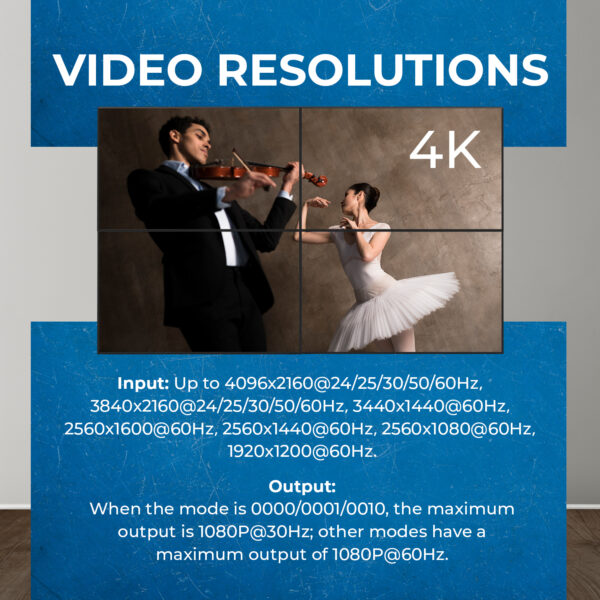

• Supports one 4096×2160@60Hz resolution HDMI signal input and nine 1080P resolution HDMI signal output.

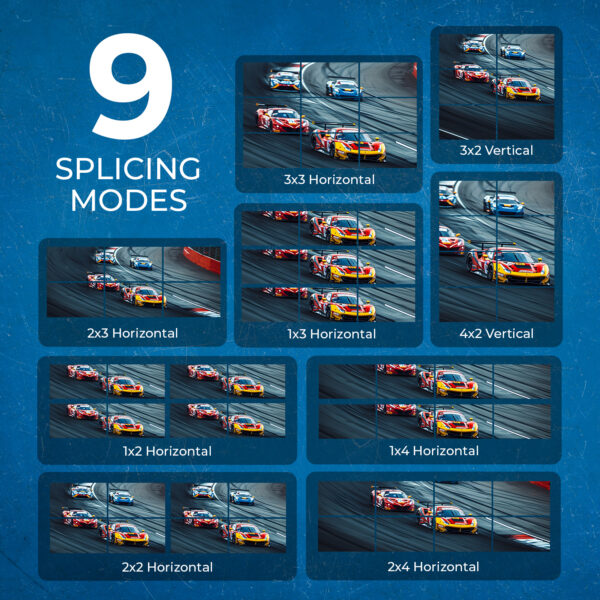

• Support a variety of splicing modes, such as 1×2/1×3/1×4/2×2/2×3/3×2/2×4/ 4×2/3×3, etc.
•  Support dip switch switching splicing mode.
• Support RS-232 control instruction to set splicing mode.
• Support 3.5mm left/right channel audio output.
• Support S/PDIF audio output.
• Supports 180-degree rotation of HDMI display image in 2×2/2X3/2X4 mode (when the upper displays installed upside down).
• Firmware upgrading via micro USB port.
• Lightning protection, surge protection, ESD protection.
• Plug and play, no need to install drivers

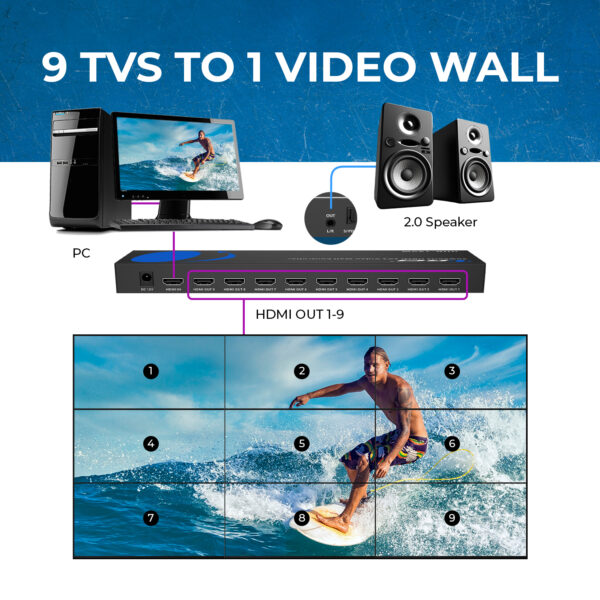

This UHD-19VW is a 1-in-9-out video wall controller, supports one HDMl source input and nine HDMl outputs. Supports 1×2/1×3/1×4/2×2/2×3/3×2/2×4/4×2/ 3×3 splicing modes, which can be set by RS-232 or dip switch. Equipped with 3.5mm audio output,S/PDlF audio output,180-degree rotation of display image.The product can flexibly adapt to different installation requirements which can be widely used in security monitoring, rail transit, broadcasting. smart cities, home theatre, training and other fields.
